Compact and Lightweight SCARA Robots

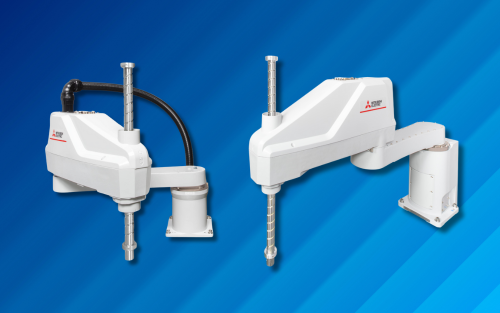

Mitsubishi Electric's MELFA RH-10CRH and RH-20CRH SCARA robots allow manufacturers to adopt digital manufacturing more easily while addressing skilled workforce shortages. These robots enhance industrial automation through high-speed operation, easy installation and exceptional efficiency. Compact and lightweight, they are ideal for manufacturers aiming to boost productivity while navigating space and weight constraints.

• Model: RH-10CRH/RH-20CRH

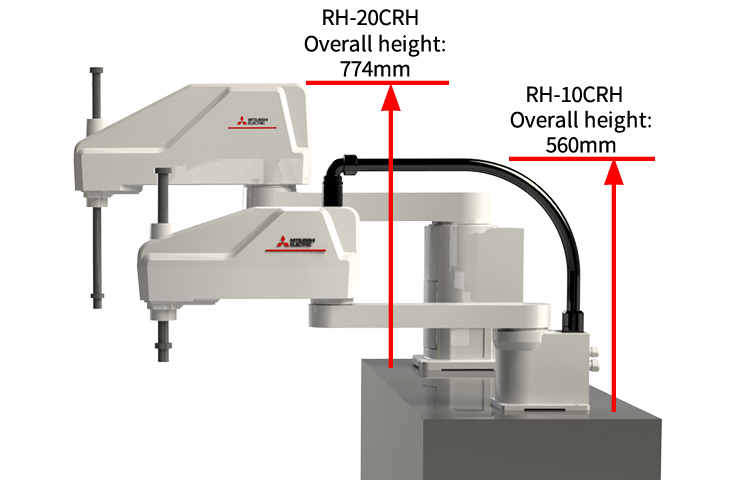

• Overall height: RH-10CRH : 560mm/RH-20CRH : 774mm
• Robot weight:
  • RH-10CRH60XX/70XX^*1 : 20kg
  • RH-10CRH80XX^*1 : 21kg
  • RH-20CRH8542 : 54kg
  • RH-20CRH10042 : 57kg
  • (*1 : XX= 20 or 30)

 Reducing overall height for a compact design

• Can be installed in a limited space.
• Can be incorporated into a wide variety of systems.
• Easy installation.

 High-speed operation and high performance for productivity.

• CC-Link IE Field Basic as standard.
• Productivity enhanced due to improved continuous operation performance.

• Eliminates the need for periodic battery replacement
• No risk of losing the origin due to a flat battery
