H2W introduces LMAA-04-01 linear induction motor

  • August 09, 2018
H2W introduces LMAA-04-01 linear induction motor
H2W introduces LMAA-04-01 linear induction motor

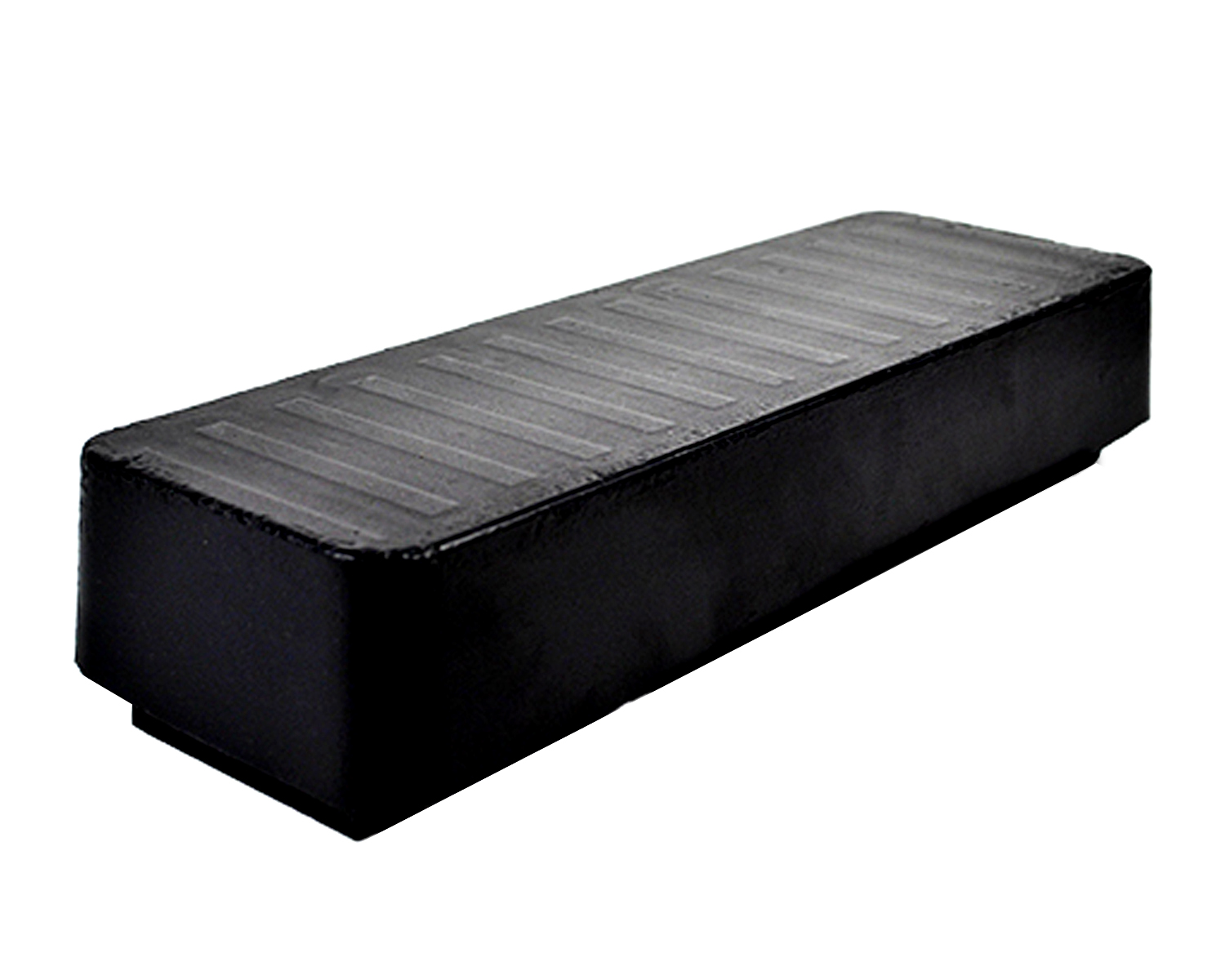

August 9, 2018 -- H2W engineers have developed a Linear Induction Motor (LMAA-04-01) that can generate 10.6 lbs [47 N] at a 15% duty cycle. Operating at 208 VAC 3-phase 60 Hz, the synchronous velocity of this LIM is 160 in/sec [4 m/s]. This LIM was designed for high speed operation; however, it can also be operated at stall (zero speed) to produce static thrust. This motor is encapsulated using high temperature 350°F [176°] potting compound which protects the components and seals it from moisture.

A non-contacting linear motor measuring 8.7 in. [223 mm] long x 3.0 in. [75 mm] wide x 1.7 in. [43 mm] high this LIM operates on the same principal as a rotary, squirrel cage, induction motor. They are typically used in applications that do not require positioning.

The 3-phase coil assembly can be directly connected to the AC line for single speed applications or to an adjustable frequency drive for variable speed control of the motor. The motors are reversible and can also be dynamically braked.

The laminated coil assembly is used in conjunction with a customer supplied aluminum and steel reaction plate to produce a force. A customer supplied bearing system is required to maintain the .125 in. [3.0 mm] air gap between the coil assembly and the reaction plate. The length of the reaction plate is typically equal to the coil assembly length plus the stroke.
