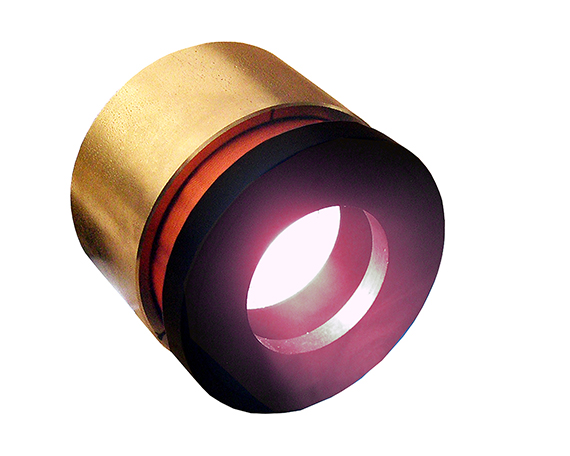

August 15, 2018 – A low inertia hollow core voice coil or moving coil linear motor from Moticont, the HVCM-051-025-019-01, features positioning to less than one micron (0.00004 in.). The HVCM-051-025-019-01 hollow core voice coil linear motor has an open apertures of 0.750 in. (19.05 mm). The hollow core allows for optics, illumination, laser beams, or cables to pass through. With a 0.50 in. (12.7 mm) stroke length, a continuous force rating of 4.8 lbs (21.3 N) and a peak force of 15.15 lbs (67.4 N) at a 10% duty cycle, this voice coil motor measuring 2.000 in. (50.8 mm) dia. X 1.00 in. (25.4 mm) housing length, is designed for applications such as: Positioning, medical diagnostics and testing, laser beam steering, dynamic vibration absorption, optical focusing, laser cutting & welding, scanning, assembly, and wafer handling.
Two 10-32 UNF-2B x 0.25 in. (6.4 mm) deep threaded mounting holes on 1.000 in. (25.4 mm) centers in the housing and coil enables integration into new and existing applications. When used in closed loop applications with an optional position sensor, resolutions of less then 1 micron are achievable for millions of cycles. If a longer stroke, higher force, a smaller foot print, or customized mounting is required consult Moticont's team of engineers. All of Moticont's voice coil motors are available as complete plug-and-play systems, including, position sensor, controller, amplifier, power supply, and if required with a linear slide.
