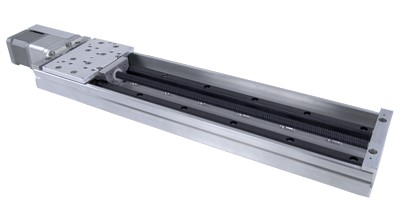

The X-LRQ-SV Series devices are high load, vacuum compatible linear stages with a built-in controller. With a profile of 36 mm, the stage design allows speeds up to 205 mm/s and loads up to 100 kg. Zaber devices allow daisy-chaining in a vacuum chamber, decreasing cables and clutter. Only four feedthrough wires are required to control all devices in a daisy-chain via serial port. These stages are vacuum compatible in high vacuum (10-6 torr) or low vacuum (10-3 torr).
Features include:
- 75 to 600 mm travel lengths
- Up to 100 N thrust and 205 mm/s speed
- Built-in controller; daisy-chains with other Zaber products
