- August 05, 2016

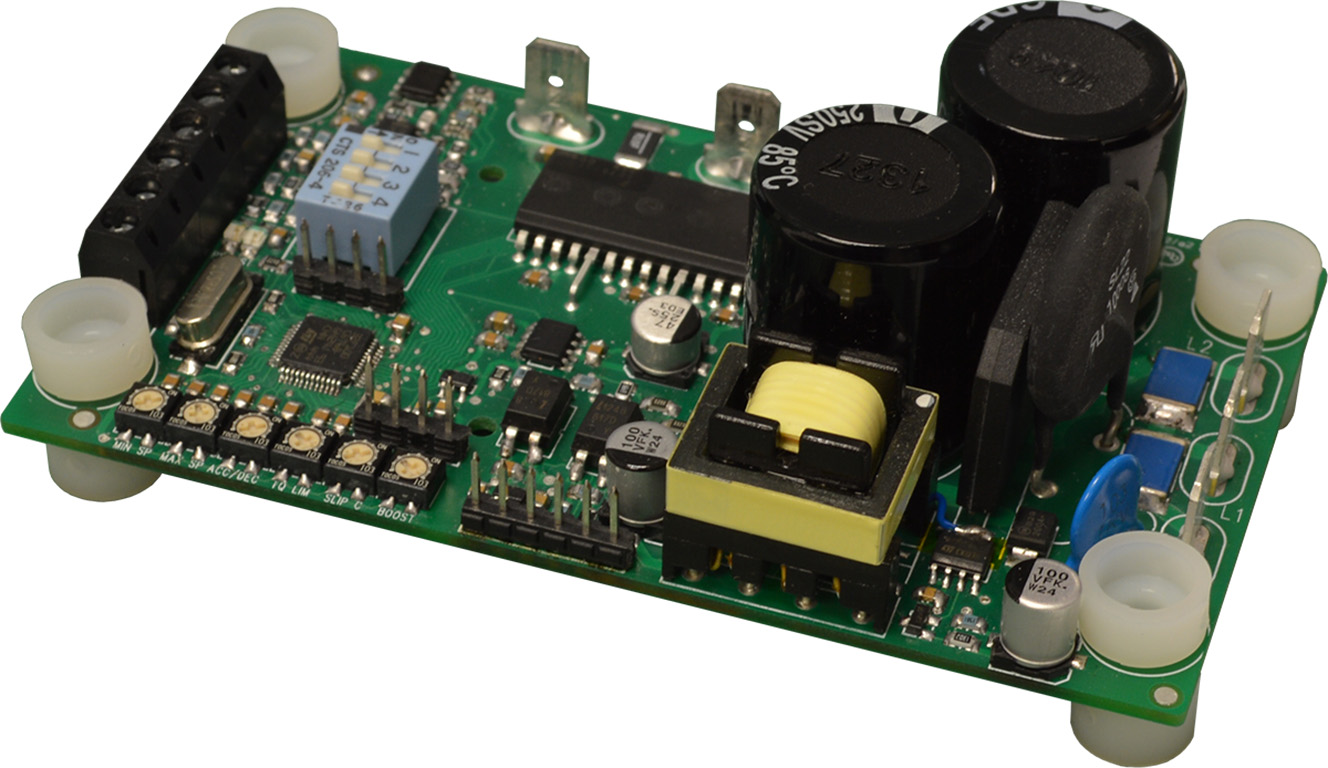

August 5, 2016 - American Control Electronics introduced the ACF Series, an open chassis microprocessor-based variable frequency drive (VFD). The drives are equipped with user-adjustable trim pots to set Max/Min Speeds, Slip Comp, Boost, Torque Limit, Accel and Decel/Injection Braking parameters. The 115V/230V single phase input can provide single or three phase outputs of 115V or 230V making it ideal for sub-fractional HP motors and gear motors. An onboard microprocessor allows custom programming for a variety of OEM applications.
ACF Series features include:
- HP: 1/60 to 1
- Voltage (VAC): 115/230
- Maximum current (AAC): 4
- Carrier frequency: 1.6 or 16 kHz
- Adjustable base frequency
- DC injection braking
- Protects against overheating as a result of frequent overload
