Delta Electronics announces PJT-27V150WBNA open frame power supply

  • January 20, 2017
  • Delta Electronics

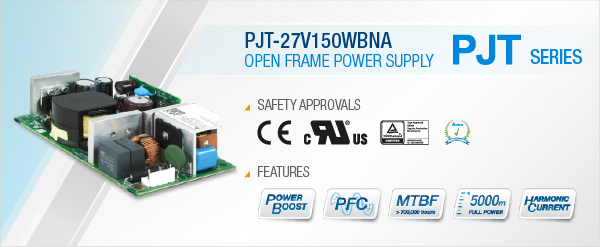

Delta Electronics announces PJT-27V150WBNA open frame power supply
Delta Electronics announces PJT-27V150WBNA open frame power supply

January 20, 2017 - Delta Electronics had added the PJT-27V150WBNA to the PJT series of open frame power supply. The PJT-27V150WBNA offers 27V/5.55A output and built-in standby output 12V/0.5A. The 3”x5” product comes with universal AC input voltage range at 90Vac to 264Vac, is usable worldwide and features built-in Power Boost of 175W for 5 seconds. The convection cooling design enables optimum thermal management for high power efficiency up to 89.5%. With built-in active PFC, PJT-27V150WBNA complies to major international safety standard IEC/EN/UL 60950-1 standards and EMI to EN 55022, Class B.

Highlights & Features

- Built-in active PFC with up to 89.5% efficiency - Power Boost 6.48A at 27V for 5 seconds - Conforms to harmonic current IEC/EN 61000-3-2, Class A - Convection cooled operating temperature range from -10°C to +70°C - Built-in standby output 12V/0.5A - High MTBF > 700,000 hrs as per Telcordia SR-332
