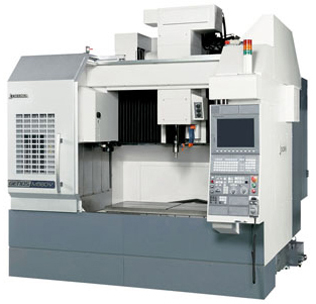

October 6, 2016 – The GENOS M560-V vertical machining center, combines a new high column design and CAT 40 BIG- PLUS spindle to cut large, complex parts. The larger work envelope minimizes restrictions on workpieces, tool lengths and the rotary table. A rigid, thermally-stable, double-column construction gives this CNC machine the ability to withstand thermal deformation. It’s also one of the heaviest machines in its class.
A 30 hp spindle with 146 ft. lbs. of torque allows this machine to cut challenging metals such as titanium and Inconel as well as stainless steel and aluminum. A separate automatic tool changer door makes tool changing seamless without interrupting the machining process. The table moves only in Y, while the spindle moves in X & Z, enabling a smaller machine footprint, rapid feed rates, precise cutting and smooth surface finishes.
Thermo-Friendly Concept, Okuma’s thermal deformation compensation technology is standard on this machine. Pretension ball screws and bi-directional spindle cooling allow for better control of the machining process. Optional Collision Avoidance and Machining Navi Intelligent Technologies are available.
Key Specs of the GENOS M560-V Vertical Machining Center
- Max Machining Volume mm (in) 1,050x560x460 (41.34x22.05x18.11)
- Table Size mm (in) 560x1300 (22.05x51.18)
- Max. Load Capacity kg (lbs) 900 (1,980)
- Spindle Speed min‚Ū¹ 15,000
- Spindle Motor Power kW (hp) 22/18.5 (30/25)
- Rapid Traverse m/min (ipm) X-Y 40, Z: 32 (X-Y: 1,575, Z: 1,262)
- Magazine Capacity 32 Tools
