2 Wires Loop-Powered 4-20mA Signal Isolator

  • September 04, 2014
  • Shenzhen WAYJUN Industrial Automation
2 Wires Loop-Powered 4-20mA Signal Isolator
2 Wires Loop-Powered 4-20mA Signal Isolator

Part No.:IAP100LF (Input:4-20ma output:4-20ma  loop powered)

Features: >>Current loop power supply with overcurrent protection >>Precision level (0.1% F.S.) >>High linearity (0.3% F.S.) >>3000VDC isolation(input/output) >>Low temperature drift (35PPM /deg.C ) >>operating temperature range: -25~71Deg.C >>Small size,standard SIP12 package >>Loop power supply:10-30V Application: >>PLC,DCS analog signal isolation,collecting >>4-20mA signal isolation and transmission >>Ground isolation and interference suppression >>Signal long-term distortion-free transmission >>Instrument signal transceiver and control >>Power control, medical equipment isolation barrier

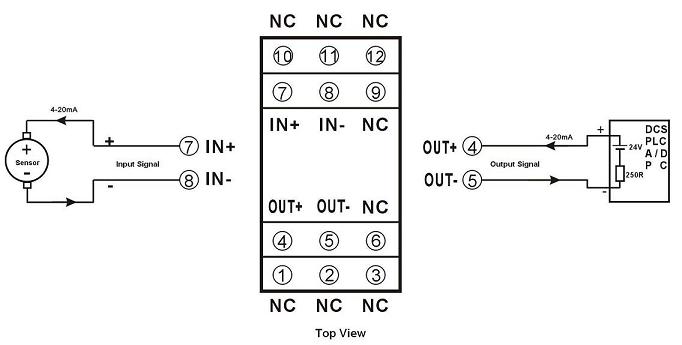

Application Diagram:
