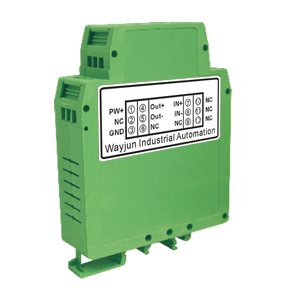

4-20mA to 0-20Hz Frequency Signal Isolated Converter/Transmitter

October 13, 2014
Shenzhen WAYJUN Industrial Automation

Features: >> Accuracy class: 0.1, 0.2. Factory calibrated, the user can use directly >> Input :0-5V / 0-10V/1-5V ,0-10mA / 0-20mA/4-20mA >> output signal :0-5KHz / 0-10KHz/1-5KHz standard signal >> Auxiliary power supply: 5V, 9V, 12V, 15V or 24VDC >> Full scale high linearity (non-linearity <0.1%) >> Isolation voltage: 2500VDC (1mA, 60S) >> Three-port isolation:input / output / power supply >> Industrial temperature range: - 45 to + 85 ° C >> Mounting: DIN 35 rail installation >> Dimensions: 79x106.7x25mm Application:

>> Analog signal isolation, data collection and transformation

>> 4-20mA isolation of the 0-5KHz signal transmission

>> Industry scene signal isolation and transformation

>> Signal long distance transmission without distortion

>> Instrument signal transceiver

>> Isolation power monitoring, medical equipment

>> Voltage or current analog signal to frequency signal

>> PLC frequency of the analog signal acquisition

>> Non electrical signal transmission

Products Listing:

DIN11 IAP - V(A)‚ñ° - P‚ñ° - F‚ñ°

Input Signal				Power Supply		Output Signal
voltage	code	current	code	Power	code	frequency	code
0-5V	V1	0-1mA	A1	24VDC	P1	0-5KHz (5V voltage pulse)	F1
0-10V	V2	0-10mA	A2	12VDC	P2	0-10KHz (5V voltage pulse)	F2
0-75mV	V3	0-20ma	A3	5VDC	P3	1-5KHz (5V voltage pulse)	F3
0-2.5V	V4	4-20mA	A4	15VDC	P4	0-5KHz (open collector)	F4
0~±5V	V5	0-±10mA	A5	user-defined	Pu	0-10KHz (open collector)	F5
0-±10V	V7	0-±20mA	A6			1-5KHz (open collector)	F6
0-±100mV	V10	user-defined	Au			user-defined	Fu
user-defined	Vu

Samples:

1: Input:0-5V Power:24V Output:0-5KHz (5V voltage pulse) Type No.: DIN11 IAP-V1-P1-F1

2: Input:0-±10V Power:24V Output:0-5KHz (open collector) Type No.: DIN11 IAP-V7-P1-F4

3: Input:4-20mA Power:12V Output:1-5KHz (5V voltage pulse) Type No.: DIN11 IAP-A4-P2-F1

4: Input:0-75mV Power:15V Output:0-10KHz (5V voltage pulse) Type No.: DIN11 IAP-V3-P4-F2

5: Input:4-20mA Power:24V Output:0-20Hz (open collector)) Type No.: DIN11 IAP-A4-P2-Fu(0-20Hz,open collector)

6: Input:4-20mA Power:24V Output:0-40KHz (5V voltage pulse) Type No.:DIN11 IAP-A4-P2-Fu(0-40KHz,5V voltage pulse)
