- September 09, 2014
- Shenzhen WAYJUN Industrial Automation
Keywords: Encoder | differential signal | pulse | isolated converter | Signal Conditioner
Features:
>> Differential encoder input signal is converted into a pulse signal directly
>> Support A, B, and Z three-phase differential simultaneous conversion
>> 3 inputs, 3 outputs, selectable output pulse amplitude
>> No change the original waveform frequency, response speed is over 500KHz
>> Three-isolation:signal input/Power/signal output 3000VDC
>> Power supply: 5V, 12V, 15V or 24V DC single power supply
>> Low cost, high small size, ease of use, reliability
>> Standard DIN35 rail mounting
>> Dimensions: 120 mm x 70 mm x 43mm
>> Industrial Temperature Range: - 45 ~ + 85 ‚ÑÉ
Application:
>> Encoder differential signal isolation, acquisition and conversion
>> Differential encoder 24V square wave pulse signal transduction
>> Servo encoder signals to the PLC differential
>> Pulse signal amplification and shaping
>> Ground interference suppression
>> Motor speed monitoring system
>> Speed ‚Äã‚Äãmeasurement and alarm
>> Signals without distortion transmission and transmission
Products Listing:
DIN33 IAP – S‚ñ° - P‚ñ° – O‚ñ°
|
Input Signal
|
Power Supply
|
Output Signal
|
|||
|
input
|
code
|
Power
|
code
|
output
|
code
|
|
|
|
24VDC
|
P1
|
output level 0-5V
|
O1
|
|
Single signal input,
peak value ( VP-P): 5V
|
S2
|
12VDC
|
P2
|
output level 0-12V
|
O2
|
|
Single signal input,
peak value ( VP-P): 12V
|
S3
|
5VDC
|
P3
|
output level 0-24V
|
O3
|
|
Single signal input,
peak value ( VP-P): 24V
|
S4
|
15VDC
|
P4
|
Open collector output
|
O4
|
|
5v differential pulse signal input
|
S5
|
|
|
|
|
|
user-defined
|
Su
|
|
|
user-defined
|
Ou
|
samples:
1: Input: Encoder differential signal Power supply: 24V Output: 0-5V level
Type No.: DIN33 IAP-S5-P1-O1
2: Input: Encoder differential signal Power supply: 12V Output: 0-24V level
Type No.: DIN33 IAP-S5-P2-O3
3: Input: 0-5V level Power supply: 24V Output: 0-24V level

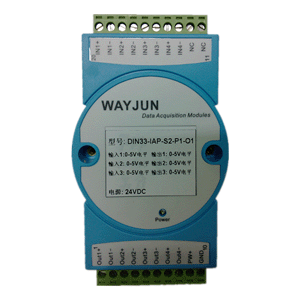

Type No.: DIN33 IAP-S2-P1-O3
4: Input: 0-5V level Power supply: 12V Output: open collector
Type No.: DIN33 IAP-S2-P2-O4
5: Input:user-defined Power supply: 24V Output: user-defined
Type No.: DIN33 IAP-Su-P1-Ou
