WAYJUN Industrial Automation Presents RS485 to 4-20mA, RS232 to 0-5V, DA Converters

Features

• DIN Rail-mounted
• RS485/232 to 4-20ma/0-5V analog signal output
• 12-bit DA converter,analog signal output accuracy>0.2%
• Can be remotely reconfigured for modules accuracy
• Three-port Isolation: 3000VDC isolation.
• Wide power supply range:8~32VDC
• High reliability, easy program, installation.
• Can program setting module address, baud rate
• Support Modbus RTU

Applications

• Intelligent building control, security and engineering applications
• RS485/232 industrial automation control system
• Industrial fields signal isolation and long-terms transmission
• Debugging and control of equipment operation
• 4-20mA signal output
• Medical machine monitoring
• Sensor signal to restore the long-range transmission and signal
• Industrial field data for a given actuator

Function description

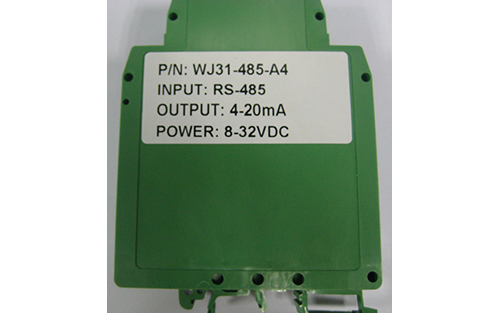

The WJ31 signal isolated D/A converter module can output one channel voltage/current signals,or 2-channel common ground and isolation current/voltage signals.
