Frequency to Current/Voltage Isolated Converter/Transmitter

  • June 05, 2014
  • Shenzhen WAYJUN Industrial Automation
Frequency to Current/Voltage Isolated Converter/Transmitter
Frequency to Current/Voltage Isolated Converter/Transmitter

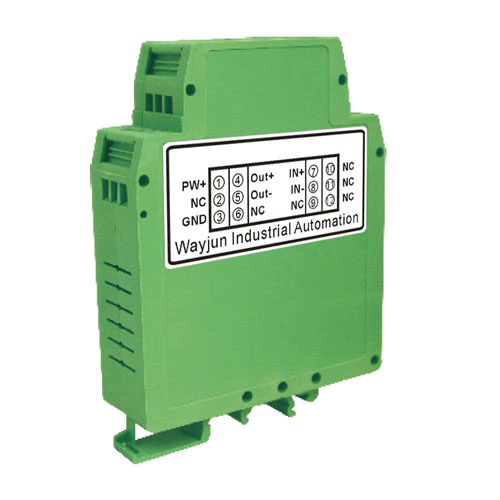

Features: >> Accuracy class: 0.2 /0.5 >> High linearity (non-linearity <0.1%) >>Three isolation:2500VDC (auxiliary power / signal input / output signal) >> Power supply: 5VDC/12VDC/24VDC >> Input frequency signal 0-1KHz / 0-5KHz/0-10KHz >> output standard 0-2.5V/0-5V/0-10V voltage signal     Or 0-10mA/0-20mA/4-20mA current signal >> Small size, the standard DIN35 rail installation >> Industrial temperature range: -20 to +85 ° C Typical applications: >> Frequency sensor signal acquisition, isolated converter >> Inverter (FA) frequency signal acquisition >> Generators, motors and other rotating equipment >> Transformer frequency detection >> Instrumentation and sensor signal transceiver >> Non-power signal transmission DIN11 IAP F-P-V (A) series frequency isolation transmitter, can change frequency signal to convert the standard isolated output signal in proportion. Name rules: DIN11 IAP F-P-V (A) DIN: DIN rail mounting IAP: isolation F: input frequency signal V (A): output voltage or current signal  Product Listing:                                       DIN11 IAP – F‚ñ° - P‚ñ° – V(A)‚ñ°

Signal Input
Power Supply
Signal Output
Frequency Signal
code
Power
code
Current
code
Voltage
code
0-1KHz
F1
24VDC
P1
0-20mA
A3
0-5V
V1
0-5KHz
F2
12VDC
P2
4-20mA
A4
0-10V
V2
0-10KHz
F3
5VDC
P3
user-defined
Au
1-5V
V6
user-defined
Fu
15VDC
P4


user-defined
Vu

Samples: 1.   Input:0-1KHz   Power Supply:24V  Output:0-5V        Type No.:DIN11 IAP F1-P1-V1 2.   Input:0-5KHz   Power Supply:12V  Output:4-20mA    Type No.:DIN11 IAP F2-P2-A4 3.   Input:0-10KHz  Power Supply:24V  Output:0-10V      Type No.:DIN11 IAP F3-P1-V2 4.   Input:0-10KHz  Power Supply:24V  Output:4-20mA    Type No.:DIN11 IAP F3-P1-A4 5.   Input:0-3KHz   Power Supply:24V  Output:0-10V     Type No.:DIN11 IAP Fu-P1-V2(Fu:0-3KHz)



Note:when you order,please note your part No.or details.
