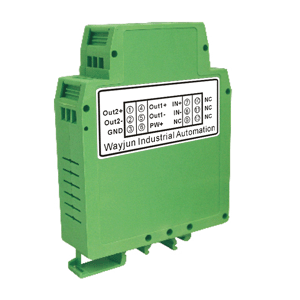

Speed signal isolation transmitter, sine wave shaping
Speed signal isolation transmitter, sine wave shaping



Features: >> Speed sensor signal input, shaping square wave signal >> 200mV peak weak signal amplification and shaping >> Sine wave, sawtooth signal input, square wave signal output >> No changing the original waveform frequency, fast response >> Input / output / power supply three-port 3000VDC isolation >> Power supply: 5V, 12V, 15V or 24V DC single power supply >> Low cost, small size, easy to use, high reliability >> Standard DIN35 rail mounting >> Size: 106.7x79.0x25.0mm >> Industrial temperature range: - 45 to + 85 ° C Application: >> Speed sensor signal isolation, acquisition and conversion >> Motor speed measurement >> Car ABS anti-lock braking system >> Speed signal amplification and shaping >> Ground interference suppression >> Motor speed monitoring system >> Velocity measurement alarm >> Signal no distortion transmitter and transmission

Product Listing:

DIN11 IAP – S‚ñ° - P‚ñ° – O‚ñ°



Input Signal
Power
Output Signal

Code
Power
Code

Code
+/-signal input,sine wave input,peak value(VP-P):200mV~50V
S1
24VDC
P1
output level 0-5V
O1
single signal input,
peak value(VP-P):5V
S2
12VDC
P2
output level 0-12V
O2
single signal input,
peak value
(VP-P):12V
S3
5VDC
P3
output level 0-24V
O3
single signal input,
peak value
(VP-P):24V
S4
15VDC
P4
Open collector output
O4
user-defined
Su


user-defined
Ou

 Samples: 1. Input:Speed ‚Äã‚Äãsensor, sine wave VP-P: 200mV~10V,Power Supply:24V,Output:0-5V level        Type No.:DIN11 IAP S1-P1-O1 2. Input:Speed ‚Äã‚Äãsensor, sine wave VP-P: 200mV~10V,Power Supply:12V,Output:0-24V level     Type No.:DIN11 IAP S1-P2-O3 3. Input:0-5V level       Power Supply:24V     Output:0-24V level                       Type No.:DIN11 IAP S2-P1-O3 4. Input:0-5V level       Power Supply:12V     Output:Open collector output        Type No.:DIN11 IAP S2-P2-O4 5. Input:user-defined   Power Supply:24V     Output:user-defined                     Type No.:DIN11 IAP Su-P1-Ou 6. Input:differential signal  Power Supply:24V  Output:Open collector output      Type No.:DIN11 IAP Su-P1-O4(Su:differential signal)



Technical Parameter:
Parameter Name Test Condition MIN. TYP MAX. Unit
Isolated Voltage 1min 1500 2500  VDC
Input Signal
AmplitudeÔºàVP-PÔºâ 0.2 10 60 V
Frequency   0 10 500 kHz
Input impedance   10   Kohm
Input current 5V input  0.45  mA
Output Signal
AmplitudeÔºàVP-PÔºâ O1: output level 0-5v  5  V
Frequency  0 10 500 KHz
Voltage(High level)
O1: output level 0-5v
 5  V
Voltage(Low level)  0 0.05 V
Current(High level)  2 5 mA
Current(Low level)  2 8 mA
Voltage
Output: Open collector output
 5 30 V
Current  3 10 mA
Response Time   1500  ns
Power supply
Voltage User-defined 3.3 12 24 VDC
Current VD=12V  83  mA
Power Supply Loss   1  W
Work Environment Temperatuer  -25  85  ‚ÑÉ
Storage Temperature  -25  85  ‚ÑÉ
