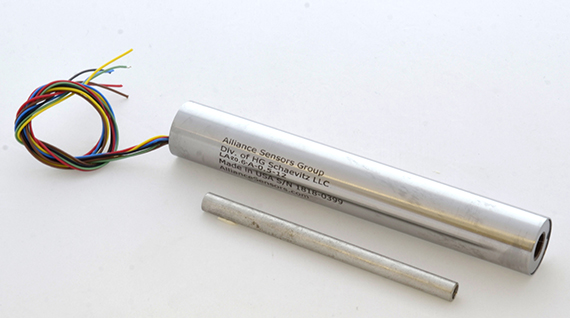

June 28, 2018 - Alliance Sensors Group, a div of H.G. Schaevitz LLC, has expanded its linear position sensor line with the LA-20.6 series of industrial AC-LVDTs (Linear Variable Differential Transformers). These linear sensors are contactless inductive devices designed for industrial and commercial user and OEM applications in the factory automation, general industrial, and test and measurement markets.
Features:
- 0.812 inch (20.6 mm) OD SS body
- 11 ranges from ±0.050 to ±10.0 inches (±1.27 to ±254.0 mm)
- -55 to 125 C operating temperature
LA-20.6 series industrial AC-LVDTs operate from a nominal 3 Vrms, 2.5 - 3.3 kHz excitation source.
They are packaged in a 0.812 inch (20.6 mm) OD SS housing with 12-inch leads, and are offered with either a metric or unified threaded 0.250 inch (6.4 mm) diameter core that works in a 0.313 inch (8 mm) ID bore.
When mated with ASG’s SC-200 DIN-rail-mountable industrial AC-LVDT signal conditioner, an LA-20.6 series LVDT becomes part of a position measurement solution ASG’s AC-LVDTs are also available in other body and range versions, including the LA-9.5, LHA-19-A, LHA-19-R, LA-19-A, LA-21, LA-25, and LA-27 series.
