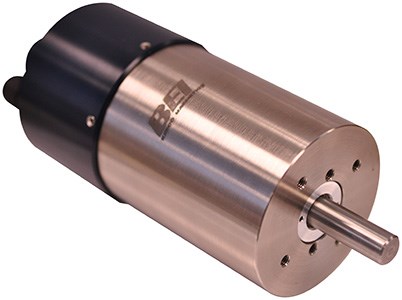

November 7, 2013 - BEI Kimco Magnetics announces Model LAS43-120-000A Housed Voice Coil Actuator (VCA). Engineered as an all inclusive package, the VCA features a stroke length of 1.25" and peak force of 340 pounds in a compact, housed assembly that measures only 4.3 inches in diameter and 12 inches in length. The LAS43-120-000A incorporates an integrated position feedback sensor with analog output ideally suited for servo positioning or velocity control applications.
Integrated shaft and bushings eliminate the need for an outside supporting mechanism to provide concentricity between the stationary and moving parts. This simplifies the amount of engineering and time required to incorporate this part into higher level assemblies.
"BEI Kimco's newest smart actuator is an expansion to the first and second generation VCA product lines," explains Jim McNamara, BEI Kimco Senior Applications Engineer. "With its integrated capabilities, it not only brings total convenience to the customer, but provides improved stroke and force capabilities." The LAS43-120-000A is well suited for applications where high speed, high reliability and extreme accuracy are required.
About BEI Kimco Magnetics:
BEI Kimco Magnetics is a brand of Custom Sensors & Technologies (CST). BEI Kimco Magnetics was founded in 1974 and specializes in rotary and linear motion control products. The company's precision motion control products include high-speed performance Brushless DC motors, Cylindrical and Flat Voice Coil Actuators, and Linear Motors. These products are used across a wide range of applications including medical and scientific, factory and office automation, optics, semiconductor/electronics, military, aviation, space systems, and security. Kimco merges leading-edge capabilities and cost-effective manufacturing know-how with highly customized applications expertise.
