Features:

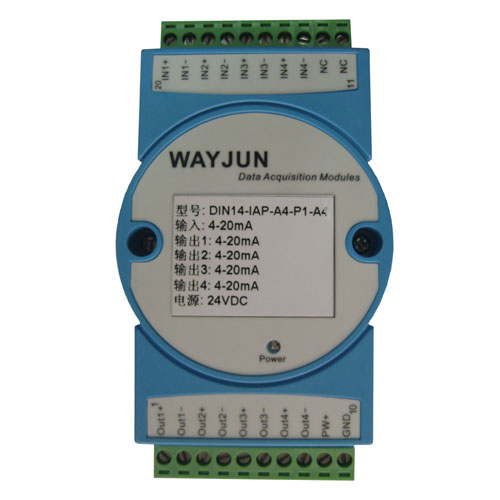

>>One input four output >>Accuracy ---------- 0.1%, 0.2% >>Isolation ---------- signal input / output / auxiliary power :3000VDC >>One standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA >>Four standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA >>Dimensions: 106.7x79.0x25.0mm >>Auxiliary power supply---------- DC5V(± 10%), 12V,15V, 24V(8-32VDC) >>Insulation resistance ---------- ≥ 20MΩ >>Operating Temperature ----------- -25 to +70 ° C >>Pressure ---------- signal input / output / auxiliary power >>Operating Humidity ---------- 10 ~ 90% (no condensation) >>Storage Temperature ----------- -45 ~ +80 ‚ÑÉ >>Impulse withstand voltage ---------- 3KV, 1.2/50us (peak value) >>Storage humidity ---------- 10 ~ 95% (no condensation) >>Size:120x70x43mm WAYJUN this product uses advanced isolated technology, quarantine inspection / monitoring DC voltage signal, small size,low power,high accuracy.
Input/output/auxiliary power supply three isolation.Widely used in such fields as electricity, chemicals, petroleum, industrial and automatic control.
Selection Guide:
DIN14 IAP - V(A)‚ñ° - P‚ñ° - V/A‚ñ°
|
input signal
|
power supply
|
output signal
|
|||||||
|
voltage
|
code
|
current
|
code
|
Power |
code
|
current
|
code
|
voltage
|
code
|
0-5V |
V1 |
0-1mA |
A1 |
24VDC |
P1 |
0-20ma |
A3 |
0-5V |
V1 |
0-10V |
V2 |
0-10mA |
A2 |
12VDC |
P2 |
4-20ma |
A4 |
0-10V |
V2 |
0-75mV |
V3 |
0-20ma |
A3 |
5VDC |
P3 |
user-defined |
Az |
1-5V |
V6 |
0-2.5V |
V4 |
4-20mA |
A4 |
15VDC |
P4 |
user-defined |
Vz |
||
user-defined |
Vz |
0-±10mA |
Az |
user-defined |
Pz |
||||
Samples: 1.Input:0-5V Power Supply:24V Output:four 4-20mA Type No.: DIN14 IAP V1-P1-A4 2.Input:0-10V Power Supply:24V Output:four 0-10V Type No.: DIN14 IAP V2-P1-V2 3.Input:4-20mA Power Supply:24V Output:four 4-20mA Type No.: DIN14 IAP A4-P1-A4
Note
:when you order,please tell us your part No. or details.
