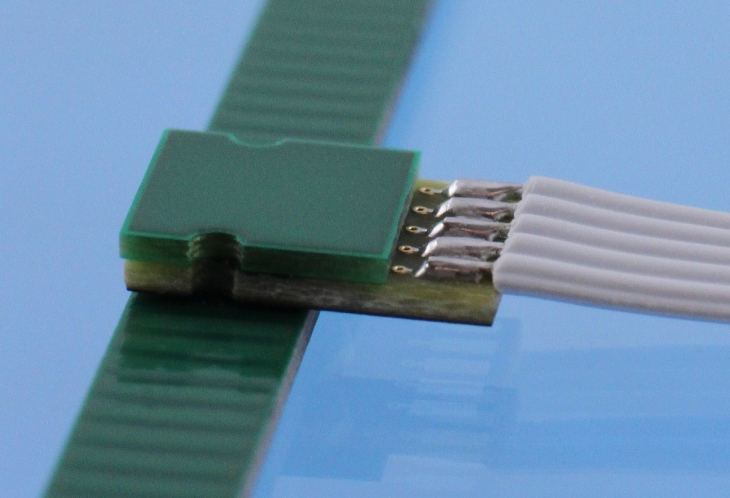

POSIC has raised the performance bar of their popular range of inductive encoder kits by releasing a next generation high resolution encoder module – the ID1102L – capable of resolutions down to 20 nm. A programming tool allows field-programming of the resolution as well as several other encoder parameters.
The encoder, which measures only 9 x 6.8 x 1.6 mm, employs an eddy-current sensing mechanism and is therefore robust against dust, particles, oil and liquids. The scale is a printed circuit board with high-precision copper patterns. It can easily be to cut to the desired length, does not attract ferromagnetic particles and doesn’t have to be cleaned for correct operation.
The ID1102L encoder as well as scales and the programming tool are available from stock.
