Features:
>> Accuracy class: 0.2 /0.5 >> High linearity (non-linearity <0.1%) >>Three isolation:2500VDC (auxiliary power / signal input / output signal) >> Power supply: 5VDC/12VDC/24VDC >> Input frequency signal 0-1KHz / 0-5KHz/0-10KHz >> output standard 0-2.5V/0-5V/0-10V voltage signal Or 0-10mA/0-20mA/4-20mA current signal >> Small size, the standard DIN35 rail installation >> Industrial temperature range: -20 to +85 ° C
Typical applications:
>> Frequency sensor signal acquisition, isolated converter >> Inverter (FA) frequency signal acquisition >> Generators, motors and other rotating equipment >> Transformer frequency detection >> Instrumentation and sensor signal transceiver >> Non-power signal transmission DIN11 IAP F-P-V (A) series frequency isolation transmitter, can change frequency signal to convert the standard isolated output signal in proportion.
Name rules:

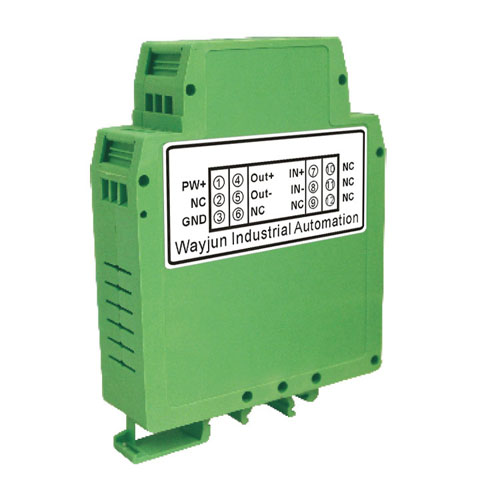

DIN11 IAP F-P-V (A) DIN: DIN rail mounting IAP: isolation F: input frequency signal V (A): output voltage or current signal
Product Listing:
DIN11 IAP – F‚ñ° - P‚ñ° – V(A)‚ñ°
Signal Input |
Power Supply |
Signal Output |
|||||
Frequency Signal |
code |
Power |
code |
Current |
code |
Voltage |
code |
0-1KHz |
F1 |
24VDC |
P1 |
0-20mA |
A3 |
0-5V |
V1 |
0-5KHz |
F2 |
12VDC |
P2 |
4-20mA |
A4 |
0-10V |
V2 |
0-10KHz |
F3 |
5VDC |
P3 |
user-defined |
Au |
1-5V |
V6 |
user-defined |
Fu |
15VDC |
P4 |
user-defined |
Vu |
||
Samples: 1. Input:0-1KHz Power Supply:24V Output:0-5V Type No. :DIN11 IAP F1-P1-V1 2. Input:0-5KHz Power Supply:12V Output:4-20mA Type No. :DIN11 IAP F2-P2-A4 3.
Input:0-10KHz Power Supply:24V Output:0-10V Type No. :DIN11 IAP F3-P1-V2 4. Input:0-10KHz Power Supply:24V Output:4-20mA Type No. :DIN11 IAP F3-P1-A4 5. Input:0-3KHz Power Supply:24V Output:0-10V Type No.
:DIN11 IAP Fu-P1-V2(Fu:0-3KHz)
Note:
when you order,please note your part No.or details.
