October 25, 2016─Pentek announced an addition to its family of Talon signal recording systems, the RTR 2623 6 GHz RF Sentinel Intelligent Signal Scanning portable recorder. The RTR 2623 combines the Pentek Talon recording system with a fully integrated 6 GHz RF down converter. The Sentinel capability adds intelligent signal scanning with real-time signal monitoring and detection that is fully user configurable.

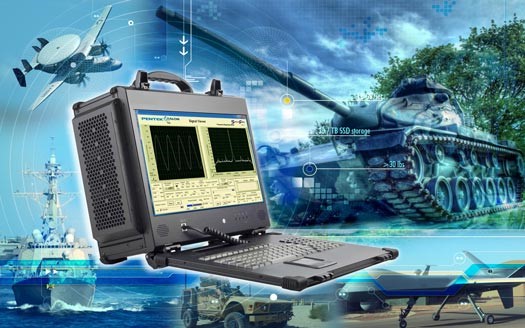

The Talon RTR 2623 is configured in a portable package measuring 16.0" W x 6.9" D x 13.0" H and weighing 30 pounds. The RTR 2623 recorder is suitable for mobile military, security and government intelligence (SIGINT, COMINT and ELINT) applications.
The recorder performs in nearly any mobile platform, even when subject to challenging levels of vibration.
A Pentek Model 78621 Cobalt transceiver module serves as the data acquisition engine of the Talon RTR 2623. Its 200 MHz 16-bit A/D converter provides 86 dB of range and 74 dB of SNR. A digital downconverter (DDC) provides frequency zooming for signal bandwidths as low as a few kHz. The Model 78621 is coupled to a 6 GHz RF tuner front end with dynamic range across its entire spectrum.
Sentinel users can scan the available spectrum or select a region of interest. Selectable-resolution bandwidth allows for the trading of sweep rate for a finer resolution and better dynamic range. RF energy in each band of the scan is detected and presented in a waterfall display. Any RF band can be selected for real-time monitoring or recording. The Sentinel hardware resources are controlled through enhancements to Talon’s SystemFlow software package.
Talon Sentinel recorders are built on a Windows 7 Professional workstation with an Intel Core i7 processor and provide both a GUI (graphical user interface) and API (Application Programmer’s Interface) to control the system. Systems are fully supported with Pentek’s SystemFlow software for system control and turn-key operation. SystemFlow software has been enhanced to include intelligent scanning and integrated control of the RF tuner and optional RF upconverter. The software provides a GUI with point-and-click configuration management and can store custom configurations for single-click setup. It also includes a virtual oscilloscope, spectrum analyzer and spectrogram to monitor signals before, during and after data collection.
Post processing and analysis software tools like Matlab can be installed directly on the Talon RTR 2623 platform. Data files are recorded to the Windows native NTFS file system, which allows operators immediate access to recordings without the need for any file format conversion.
