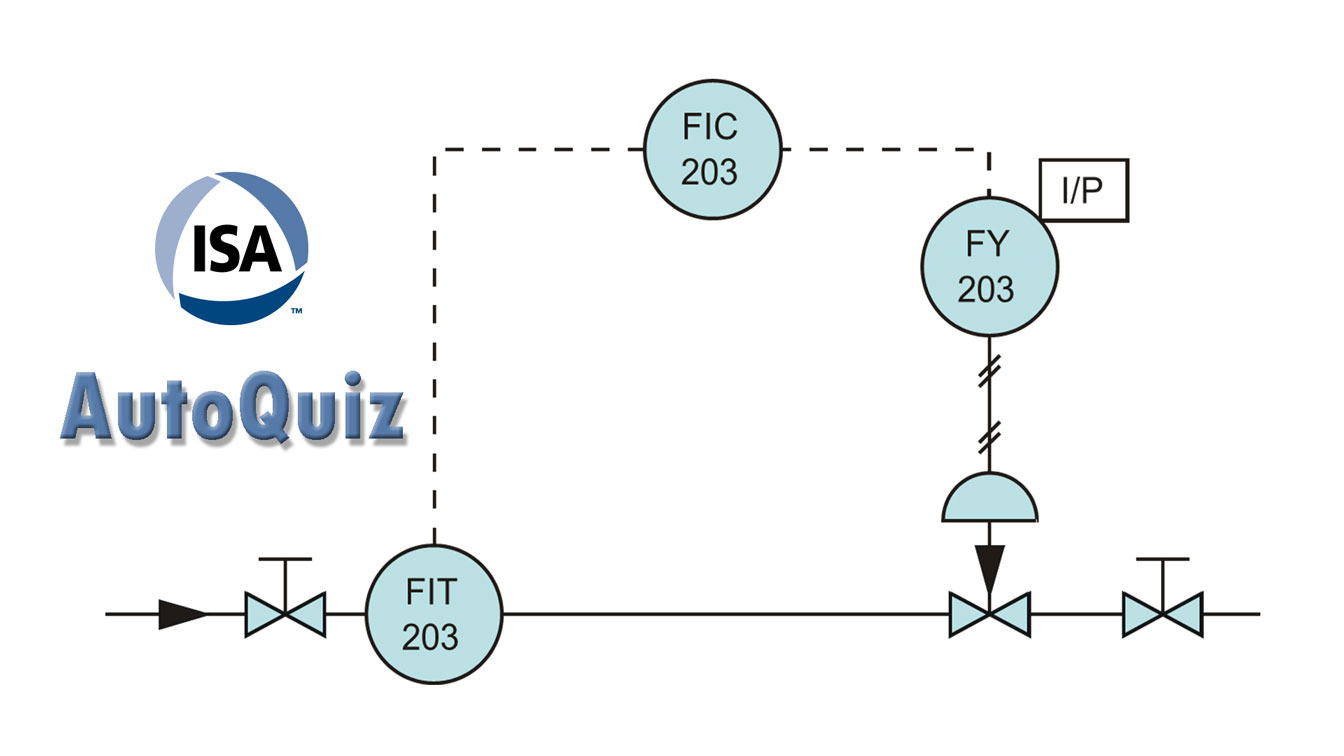

From the diagram, the output of FIT is a/an:
a) electric signal b) hydraulic signal c) pneumatic signal d) capillary signal e) none of the above

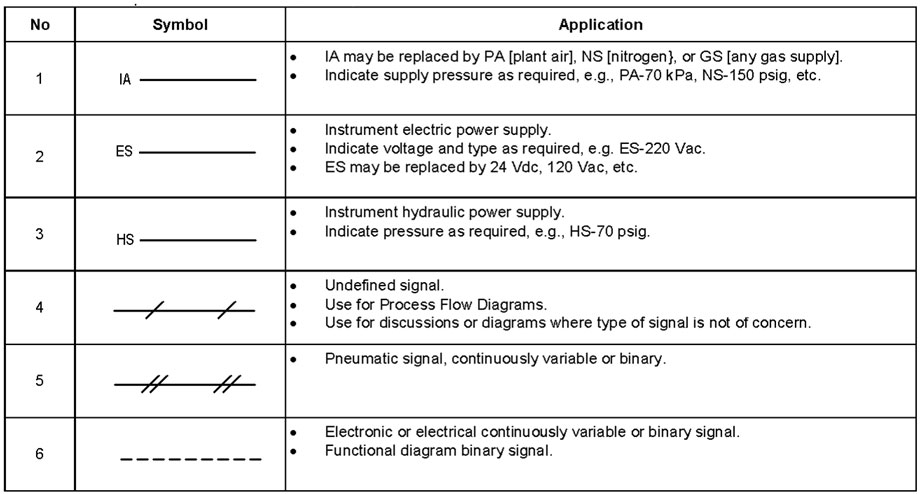

This chart illustrates some of the standard symbology used in P&ID documentation
The correct answer is A.
