0-10V to 0-10V Signal Isolated Converter

By: Shenzhen WAYJUN Industrial Automation
22 May, 2014

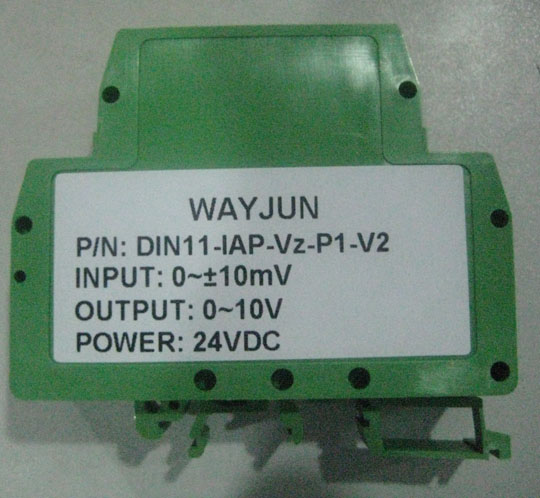

0-10V to 0-10V Signal Isolated Converter
0-10V to 0-10V Signal Isolated Converter
Optical Isolation Amplifier Module

Keywords:

4-20mA to 1-5V | 0-15V to 0-5V|0-100mV to 4-20mA|0- + 10V to 0-5V|0-75mV to 0-10V| isolation amplifier IC|signal isolation transmitter |small signal amplification|isolation transmitter|signal converter

Features:

>> Optical Isolation Amplifier Module >> Accuracy grade: 0.1/0.2/0.5.

Factory calibrated, the user can use directly >> Auxiliary power supply: 5V/12V/15V/24VDC (± 10%) >> International standard one signal input: 0-100mV/0-75mV/0-24V/0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA >> Standard one output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA >> High linearity (nonlinearity <0.2%) >> DIN35 rail mounting >> Size: 79.0x69.50.0x25.0mm >> Strong anti-electromagnetic interference and high-frequency signal interference capability

Application:

>> Analog signal data isolation, collection and transformation >> Isolated 4-20mA or 0-20mA signal transmission >> Signal isolation and conversion of industrial site >> Long-term signal transfer without distortion >> Instrument signal transceiver >> Power monitoring, medical equipment isolation >> Ground interference suppression >> PLC / FA motor control signal isolation

Product Listing:

DIN11 IAP - V(A)‚ñ° - P‚ñ° - V/I‚ñ°
Input Signal
Power Supply
Output Signal
voltage
code
current
code

Power
code
current
code
voltage
code

0-5V

V1

0-1mA

A1

24VDC

P1

0-20ma

A3

0~5V

V1

0-10V

V2

0-10mA

A2

12VDC

P2

4-20ma

A4

0-10V

V2

0-75mV

V3

0-20ma

A3

5VDC

P3

user-defined

Az

1-5V

V6

0-2.5

V4

4-20mA

A4

15VDC

P4

user-defined

Vz

user-defined

Vz

user-defined

Az

Samples: 1.Input:0-5V Power Supply:24V Output:4-20mA Type No.: DIN11 IAP V1-P1-A4 2.Input:0-10V Power Supply:24V Output:0-10V Type No.: DIN11 IAP V2-P1-V2 3.Input:4-20mA Power Supply:24V Output:4-20mA Type No.: DIN11 IAP A4-P1-A4 4.Input:0-100mV Power Supply:24V Output:4-20mA Type No.: DIN11 IAP Vz-P1-A4(Vz:0-100mV) 5.Input:0-75mV Power Supply:24V Output:0-10V Type No.: DIN11 IAP V3-P1-V2 6.Input:0~+/-10mV Power Supply:24V Output:0-10V Type No.: DIN11 IAP Vz-P1-V2(Vz:0~+/-10mV)

Photo of Shenzhen WAYJUN Industrial Automation

Shenzhen WAYJUN Industrial Automation
Shenzhen WAYJUN Industrial Automation designs A/D and D/A Data Acquisition Module,digital signal DI/DO module, analog signal isolated converter, signal conditioners, 4-20mA current signal splitter, isolated amplifier (RTD/current/voltage/frequency/speed/potentiometer/pulse), Min-power DC DC converters. Our products also carry the CE approval for safety. WAYJUN's products are widely used in the industry power fields of control, electric power, electronic instrument, medical electronic, rail transit, communication, telecom, automation, Medical and Test & Measurement.
