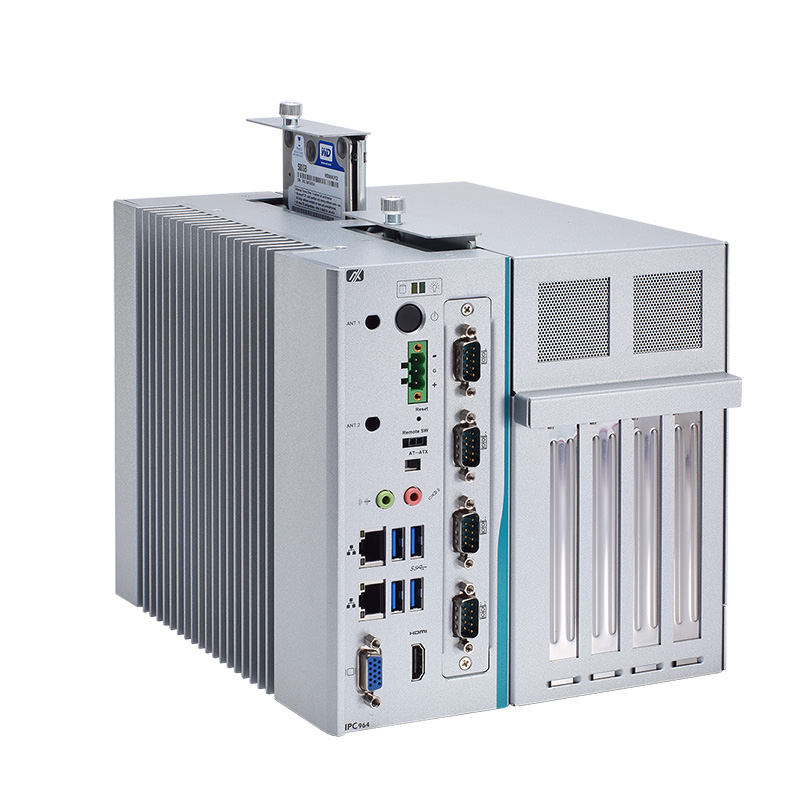

April 3, 2018 – Axiomtek, a designer and manufacturer of PC-based industrial computer products, introduced the IPC964- 512-FL, a 4-slot fanless industrial embedded system. This modular, IP40-rated industrial PC is designed to be scalable and customizable. It is powered by 7th/6th generation Intel Core or Celeron processors, with the Intel Q170 chipset. The IPC964-512-FL’s modular feature allows for customization - and is a choice for a variety of Industrial IoT applications including automatic optical inspection (AOI), motion control and factory automation.
The IPC964-512-FL comes with one I/O module slot with a choice of three different types of I/O modules. These choices include a 4-port RS-232/422/485 module; an isolated 8-in/8-out DIO module; and a 2-port isolated RS-232/422/485 and 4-in/4-out DIO module. This industrial PC offers four PCI/PCIe slots that have two different combinations of expansion kits: one PCIe x16 and three PCIe x4, or one PCIe x16, one PCIe x4 and two PCI. It also features a wide choice of I/O interfaces, including two Gigabit LAN ports, four USB 3.0 ports, one VGA, one HDMI and one audio (Mic-in/Line-out).
For communications, the IPC964-512-FL also offers a full-size PCI Express Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections. Its other important features include dual DDR4-2133 SO-DIMM slots with up to 32GB memory and two easy-swappable 2.5” HDD trays for additional storage needs. Designed with user-friendliness in mind, there is also an easily accessible external switch for AT/ATX mode selection. The IPC964-512-FL is compatible with Windows 10 and Linux operating systems, and supports Axiomtek’s exclusive AXView software for smart device monitoring and remote management for Industrial IoT applications.
Features:
- 7th/6th generation Intel Core i7/i5/i3 or Celeron processors with Intel Q170 chipset
- Modular front I/O design with IP40 rating
- Features four customizable expansion slots
- Fanless operating temperature range of -10°C to +60°C and power input range of 19V to 30V DC
