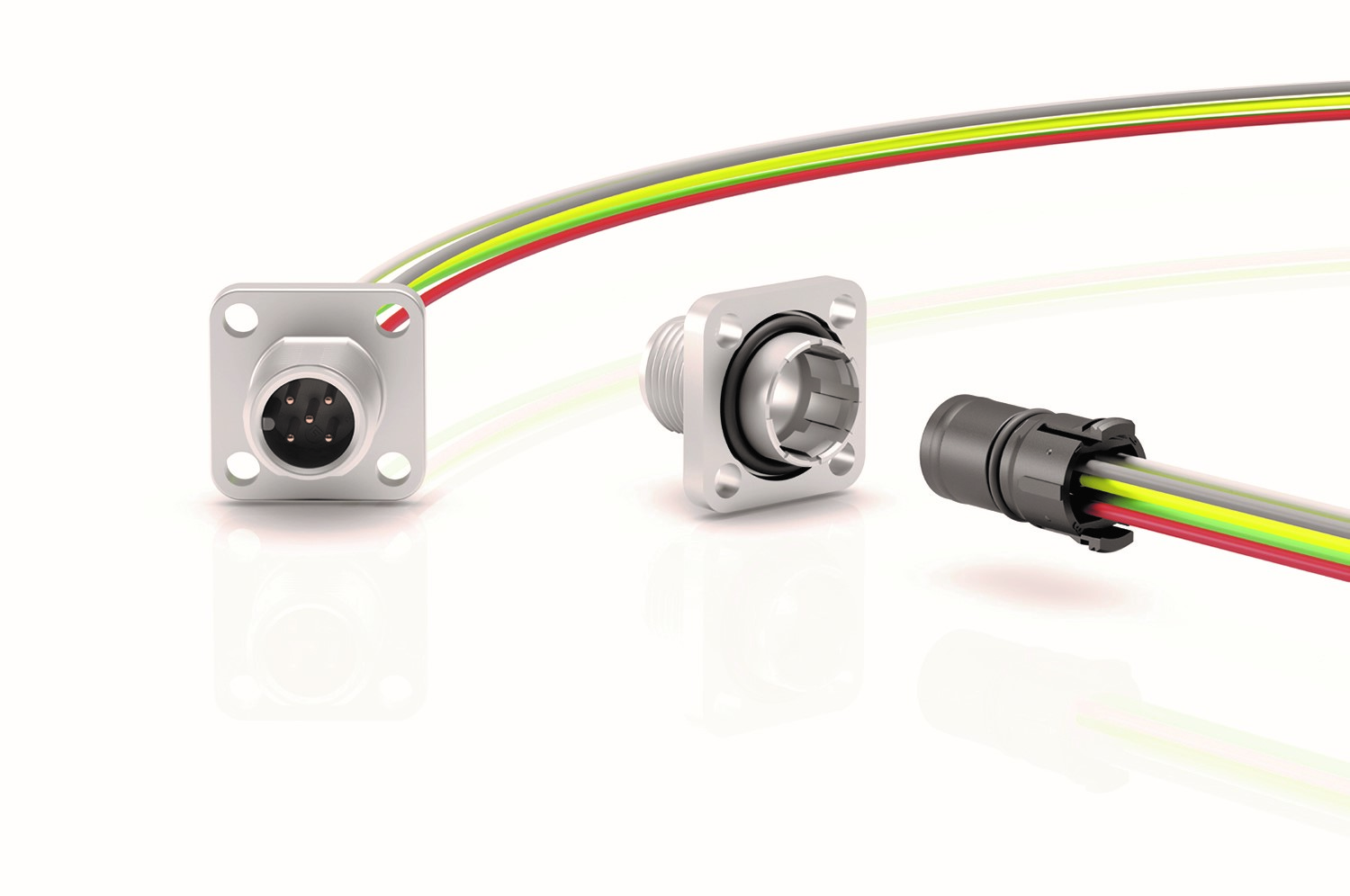

binder’s M12 connector has a separate contact body, allowing it to be positioned exactly where users want the mating right-angle cable connector.
March 12, 2019 – binder has expanded the M12 product family with the addition of the positionable and lockable M12 male panel-mounted connector . Standard panel-mount connectors have a fixed contact insert, limiting the mating connector to a single fixed position. binder’s M12 connector has a separate contact body, allowing it to be positioned exactly where users want the mating right-angle cable connector. This feature allows users to keep the cable from obstructing other connections or devices on the panel. Additionally, the contact body is prewired with 24 AWG wires for assembly, and available with 4, 5, or 8 contacts.
Features of the binder M12 positionable panel-mounted connector include:
- Coding: A
- Contacts: 4, 5, 8
- Thread: M12
- Rated current: 4 A (3 A UL), 1,5 A (2A UL)
- Rated voltage: 250 V, 60 V, 30 V
- Degree of protection: IP68 in mated condition
- Contact plating: Au (gold)
- Termination: Single wires AWG24/7
