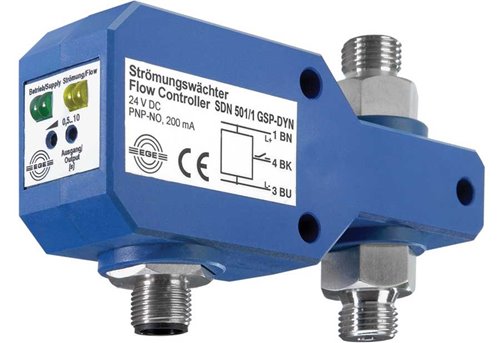

March 4, 2020 - EGE designed its dynamic SDN 501/1 GSP-DYN flow controller to detect minimal pulsating flow rates from 0.02 ml. Suitable for most common liquids such as water, alcohol, oils, and fluid greases, the flow sensor is designed for monitoring minimum lubrication or ensuring that the right amounts of chemicals or additives are metered out. Since the sensor operates according to the thermodynamic principle, it does not have any moving or corrosion-prone wear-and-tear parts.
Due to its sensitivity, it reacts to changing flow rates – caused for example by the actuation of a dosing piston – with reaction times of 0.1 s. The sensor's built-in processing unit emits a switching signal for each detected pulse via a short-circuit-proof PNP-NO output and can hold the signal for up to 10 s. In addition, green and yellow LEDs on the housing front signal the detected pulses and the current device status. Manufactured from stainless steel and PBT, the sensors feature IP54 ingress protection and withstand pressures up to 10 bar.
They are suitable for media temperatures between 0 °C and 80 °C. The units are operated with 24 VDC. They are fitted into pipes via a tube fitting or a G¼ thread and connected by means of an M12 connector. Mounting angles are available as accessories. The flow controllers' design enables parallel installation of several devices with different monitoring functions.
