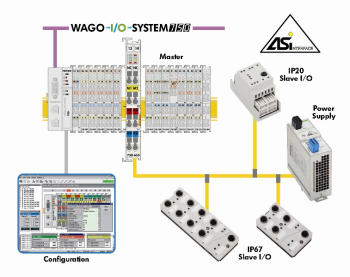

AS-Interface is perhaps the most simple, yet powerful, fieldbus network for the connection of Actuators and Sensors. Now, the AS-Interface Network is supported by the most flexible, modular, and cost effective I/O System – The WAGO-I/O-SYSTEM.
Master Module
The AS-Interface Master module fits within the node of the WAGO-I/O-SYSTEM. At a minimum it requires a coupler and an end module, but can also be outfitted with additional analog, special function, and digital 750 Series I/O modules.
- Meets AS-I spec. 2.1 (certificate ZU50601)
- Supports up to 62 AS-Interface slaves (over 400 I/O pts.)
- Supports AS-Interface “Safety At Work”
- Scan time of 0.3ms..10ms max.
- Super compact at less than ½” wide.
- Easy sensor/actuator wiring with M12 connectors
- A/B slaves according to AS-Interface spec. 2.1
- I/O density up to 4 in and 4 out – 24V/2A
- Built-in LEDs for switch error, and short circuit indicationIP-20 I/OThe 751 Series IP-20 AS-Interface slave devices offer and economical, in the control cabinet, solution for the connection of standard sensors and actuators to the AS-Interface network
- Compact, modular, DIN rail mount design
- A/B slaves according to AS-Interface spec. 2.1
- I/O density up to 4 in and 4 out – 24V/2A
- Pluggable wiring with WAGO MCS connectors
- Built-in LEDs for switch error, and short circuit indicationPower SuppliesThe 787-692 is a cost effective power supply solution for the AS-Interface network.
- Input Voltage 100-240VAC at 50-60 Hz or 140-300VDC
- Output Voltage 30.5 VDC at 3A
- Short Circuit Protection
- Dimensions 4.33”x 1.89”x 4.53”(HxWxD)
Gateway Solution
Gateway to higher-level control/enterprise networks with 750 Series WAGO programmable and non-programmable fieldbus couplers.
Programmable Coupler (PLC)
Industrial PC : 758-870; Ethernet : 750-841, 750-842; DeviceNet : 750-806; Profibus : 750-833; CANopen : 750-837, 750-838
Non-Programmable Coupler
Ethernet : 750-341, 750-342; DeviceNet : 750-306, 750-346 (ECO); Profibus : 750-301, 750-303, 750-333, 750-343 (ECO); CANopen : 750-337, 750-338, 750-347, 750-348
IP-67 I/O
The 751 Series IP-67 AS-Interface slave devices offer sensor and actuator connection with ingress protection against water immersion and dust, no enclosure required, for application in the most rigorous of industrial environments.
