Guided wave radar (GWR) technology is an industry standard for tank level measurement, recognized for its accuracy, reliability and versatility across a wide range of applications. As industrial professionals seek solutions and technologies that deliver precise readings, reduce maintenance and enhance safety, GWR is a good alternative.
What is guided wave radar, and how does it work?
Guided wave radar is a contact measurement technology used for determining the level of liquids, solids or the interface between two different liquids within tanks and vessels. It operates by launching microwave pulses down a probe — typically a rod or cable — into the process media. When the pulse encounters a change of impedance due to the change in dielectric between air and the process media, part of the signal is reflected back to the transmitter.
The time it takes for the signal to return is directly proportional to the distance from the probe to the material, allowing for highly accurate level readings. Unlike traditional radar, GWR’s guided path minimizes interference from vapor, foam and changing process conditions, making it ideal for demanding environments.
Why is GWR preferred for tank level measurement?
Guided wave radar offers several advantages over other level measurement technologies like ultrasonic, capacitance or float systems. Its immunity to temperature fluctuations, pressure changes and the presence of vapors ensures consistent performance. GWR is suitable for a wide range of tank types, including those with narrow spaces or turbulent surfaces, and can measure both liquids and solids. Its installation is straightforward, requiring minimal calibration and the technology is compatible with hazardous or corrosive environments. These features make GWR the preferred choice for tank level measurement in industries like oil and gas, chemical processing, water treatment and pharmaceuticals.
How does guided wave radar improve safety and compliance?
Safety and regulatory compliance are critical in industrial operations. Guided wave radar enhances safety personnel and property by providing reliable, real-time level monitoring and preventing hazardous material releases. GWR devices meet stringent industry standards, including certifications for explosion-proof and intrinsically safe operation.
The technology also supports automated alarms and shutdown procedures, reducing reliance on manual intervention and minimizing human error. By maintaining accurate records and facilitating regular audits, GWR assists companies in meeting compliance requirements for environmental and safety regulations.
What are the latest advancements in QWR technology?
Recent developments in Guided Wave Radar have focused on improving measurement accuracy, diagnostics and ease of integration. Modern GWR instruments feature advanced signal processing algorithms that filter out noise and compensate for challenging process conditions. Enhanced probe designs allow for greater compatibility with a variety of tank geometries and media types, including high-viscosity liquids and powders. Wireless communication options and digital interfaces such as HART, Modbus and PROFIBUS simplify connectivity with plant control systems. Additionally, manufacturers are introducing self-cleaning probes and robust materials to expand GWR’s suitability for harsh environments and reduce maintenance needs.
How does electronic verification enhance GWR reliability?
Electronic verification is a critical feature in contemporary guided wave radar devices. It enables operators to confirm instrument functionality and calibration without interrupting the process or removing the device from service. Electronic verification typically involves built-in test routines and diagnostics that check the transmitter, probe and signal integrity. This capability streamlines maintenance procedures, supports predictive maintenance strategies and ensures ongoing compliance with operational and safety standards. Reliable electronic verification reduces downtime and boosts confidence in measurement accuracy, making GWR a dependable solution for critical applications.
What are the key features and benefits of modern guided wave radar?
Modern guided wave radar technologies are equipped with advanced diagnostics that provide real-time status and alert operators to potential issues before they escalate. Features include self-monitoring for probe contamination, signal obstruction and electronics health. Maintenance is simplified through intuitive user interfaces, remote access options and automated calibration tools. Many GWR devices offer predictive maintenance alerts, allowing for proactive scheduling of service and minimizing unplanned outages. These diagnostic capabilities not only ensure optimal performance but also extend the life of the equipment and reduce total cost of ownership.
Guided wave radar delivers several key benefits. Its high measurement accuracy and repeatability reduce process variability and improve product quality. The technology’s robustness and versatility minimize maintenance demands and allow for deployment in a variety of challenging environments. Enhanced safety features and compliance support make GWR an essential tool for risk management.
With user-friendly interfaces, digital integration and advanced diagnostics, GWR enables seamless operation and efficient asset management. These advantages position guided wave radar as a future-ready solution for tank level measurement.
What is an example of a modern GWR device?

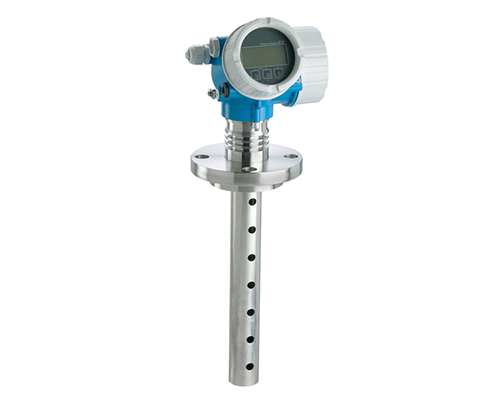

The Levelflex FMP55 from Endress+Hauser stands out as a premier guided wave radar instrument because of its unique combination of capacitive and radar measurement principles, ensuring reliable interface level readings. Typical guided wave radar devices struggle to maintain interface measurement when thick emulsion / rag layers are present. The FMP55’s multiparameter capability means the instrument will maintain accurate interface measurement regardless of the thickness or variability of the emulsion layer.
Flexible insertion design allows for straightforward installation in tanks with limited access or complex geometries, minimizing downtime and simplifying retrofits. Additionally, digital integration and user-friendly configuration tools streamline connectivity and maintenance, making the instrument a top choice for industry professionals seeking accuracy, versatility and operational efficiency.
In summary, guided wave radar technology continues to advance, providing unmatched reliability and versatility for industrial applications. Its robust features, ease of integration and ongoing innovation ensure that GWR remains a trusted solution for accurate level measurement and operational excellence well into the future.
What is the future outlook for guided wave radar technology?
The future of guided wave radar is marked by continued innovation and broader application across industries. Emerging trends include integration with Industrial Internet of Things (IIoT) platforms, greater use of artificial intelligence for data analysis, and expanded wireless capabilities for remote monitoring. As regulatory requirements become more stringent and operational efficiency increasingly critical, GWR’s role in industrial automation and safety will only grow.
