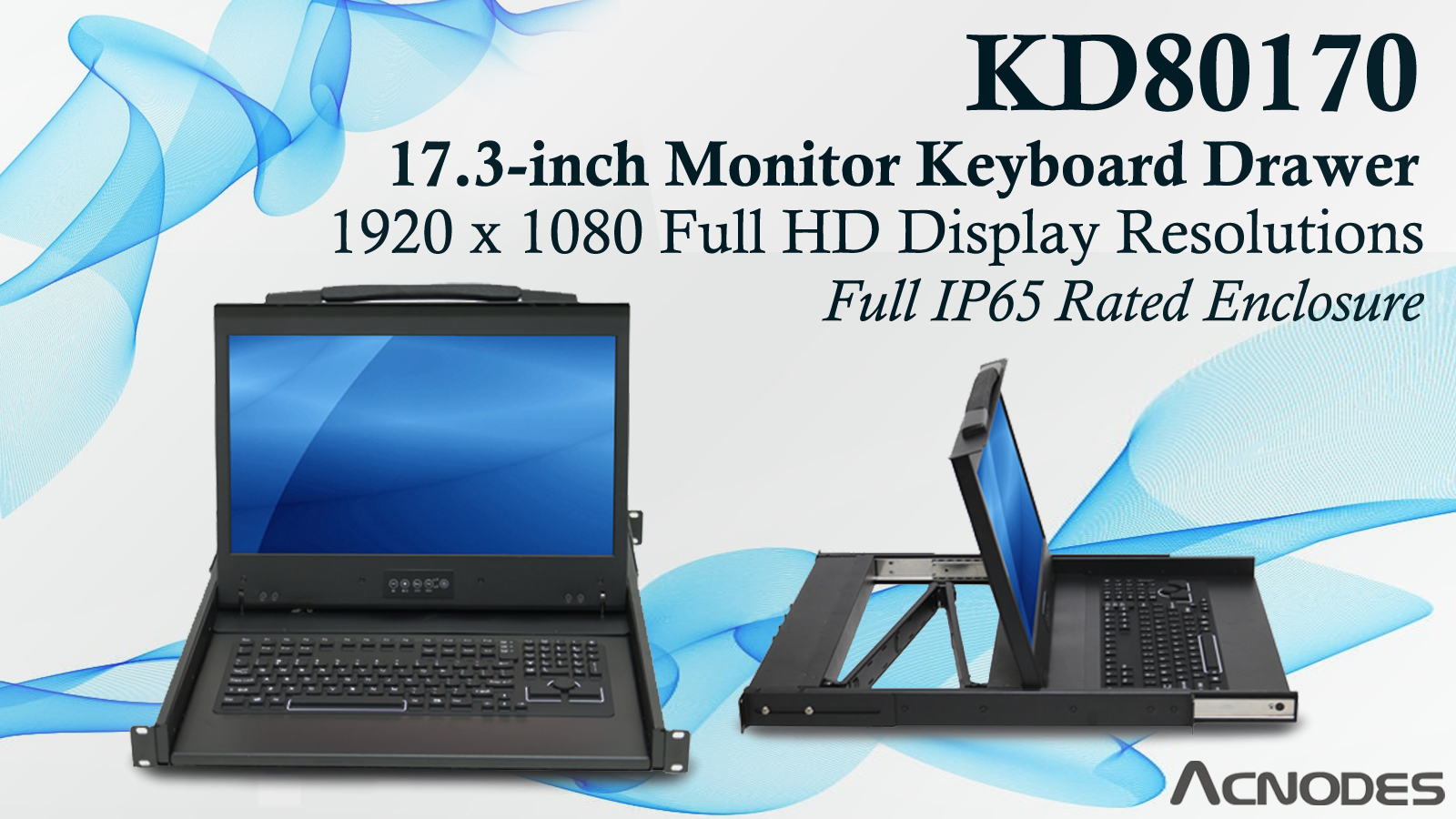

The KD80170 is a 17.3 inch rack console with 1920 x 1080 full HD LCD and VGA + DVI input, full IP65 rated rubber keyboard, pointer and connector in a 1U high 19.69 inch depth rack mount drawer. Acnodes Corporations’ newest star product is the KD80170. This model has full IP65 rated rugged enclosure.
It includes full HD industrial LCD monitor.
It has OSD (On Screen Display) function. In addition, it allows for VGA + DVI input. Furthermore, it has full IP65 rated rubber keyboard and pointer. It has excellent AC power input. KD80170 Features It has a brightness of 400 and a contrast ratio of 600:1.
Its active area in mm is 381.888 (H) x 214.812(V), and its pixel pitch in mm is 0.1989(h) x 0.1989(V).
Its viewing angle is 170 degrees (H) and 160 degrees (V). Additionally, it has LED backlights. Its colors are 16.7 M. Its MTBF goes to 50,000 hours, and the KD80170 has the option for a 1000-nit high brightness display.
The KD80170 features AR protective glass, and it is waterproof. Moreover, it has the option of 2 x 2w speakers. It has 5-key OSD control buttons (including but not limited to menu, auto adjust, brightness, and adjustment). Plus, it has AC power input.
Not only that but its power consumption is 32W (typ.). In addition, its power management is VEDA DPMS Compliant. Its I/O includes a VGA (IP65 connector), a DVI (IP65 connector), an AC power input (IP65 connector), and a USB for the keyboard. It can operate at -10° to 60° C (14° to 140° F).
It can be stored at -30° to 70° C (-22° to 158° F). Furthermore, its shock resistance has full compliance to MIL-STD-810F Method 516.6 Procedure I. Its immunity to vibrations has full compliance to MIL-STD-810F Method 514.5 Procedure I.
Last but not least, it can withstand humidity of 5-95%, non-condensing.
