CPL230 sensor system can support up to six channels of capacitive sensing.

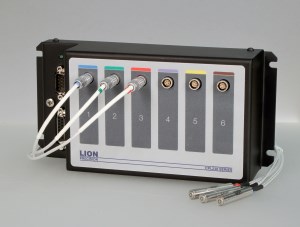

July 2, 2015 - Lion Precision introduces CPL230 sensor system that can support up to six channels of capacitive sensing. The CPL230 has color-coded channels and probes for easy installation into machines. With no user adjustments or displays, the electronics can be installed in out-of-the-way places. Systems typically ship with 15 kHz bandwidth. Users can access an internal dip-switch to set the bandwidth to 15 kHz, 10 kHz, 1 kHz, 100 Hz.
The bandwidth selection allows users to opt for higher resolutions or higher speeds.
CPL230 Specifications:
- Measurement Ranges: 10µm to 12.5 mm (0.0004 to 0.5 inches)
- Maximum Bandwidth: 15 kHz
- Typical Linearity: 0.5% F.S.
- Thermal Stability: 0.04% F.S.
- Differential Output: ±10 V
- Single Ended Output: ±5 V
- Operating Temperature: 4-50°C
- Power Requirements: ±15 VDC (External power supply included with device)
