Modern manufacturers generate more machine data than ever, but most still use only a fraction of it. In an environment defined by labor shortages, rising uptime expectations and pressure to improve overall equipment effectiveness (OEE), simple data collection is no longer enough. Industry 4.0 is predicated on the ability to collect data reliably to make data-driven decisions to guide organizational progress toward performance, sustainability and governance goals.
Machine learning (ML) is the next logical step. ML analyzes historical and real-time data to identify patterns, detect early signs of failure and uncover inefficiencies that would otherwise go unnoticed. Instead of reacting to problems after the fact, manufacturers can prevent them, which improves throughput, stability and reliability across the plant.
Today's manufacturers have become skilled at capturing data from their machines. But to truly move their plant into the Industrial Internet of Things (IIoT), they need to move beyond simple data collection. Using that data with intention can lead to smarter, faster and more reliable operations.
Machine learning (ML) can be a valuable tool to help transition from real-time fault detection to predictive maintenance and beyond. ML is a specific type of Artificial Intelligence and is how devices gain their "knowledge." The device processes large amounts of data to recognize patterns, identify correlations and apply rules. It can then detect anomalies and react accordingly. Learning occurs autonomously without explicit programming from humans. Phoenix Contact has begun integrating ML into its own plant operations. In this article, we'll share some of the benefits we're seeing. We'll also offer some tips for other manufacturers considering adding ML to their own IIoT toolbox.

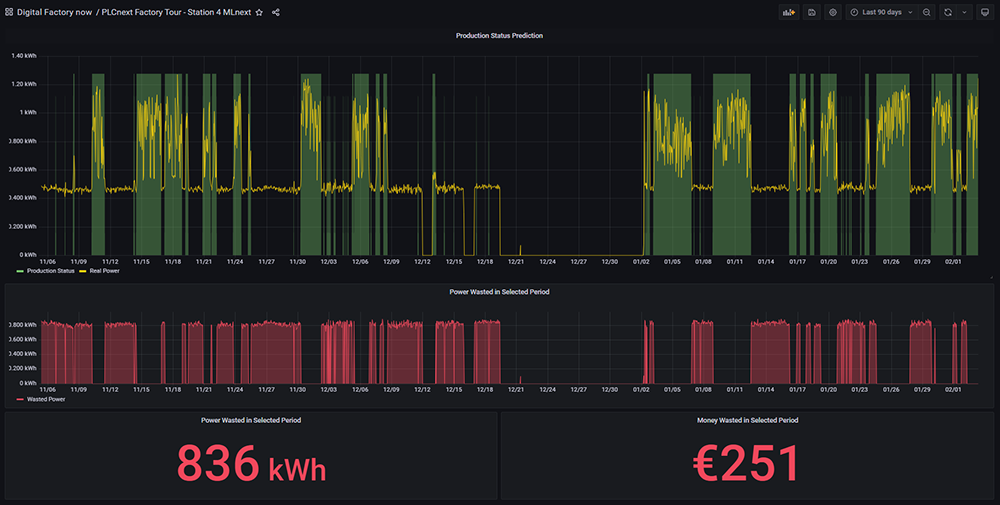

Several years ago, Phoenix Contact began an ambitious energy monitoring project in its U.S. plant. The project was based on a similar initiative at our headquarters in Germany, and the German plant had already implemented energy monitoring into its process. As we looked to improve the energy monitoring for our local machines, ML was the next natural step (Figure 1).
Here are some of the ways it's already improving operations:
1. Real-time fault and anomaly detection

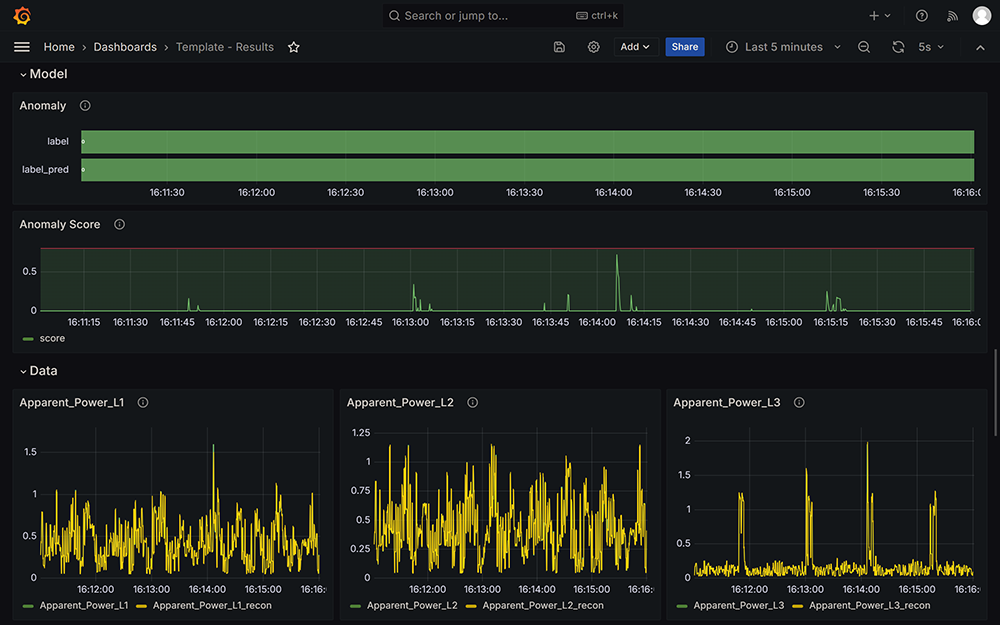

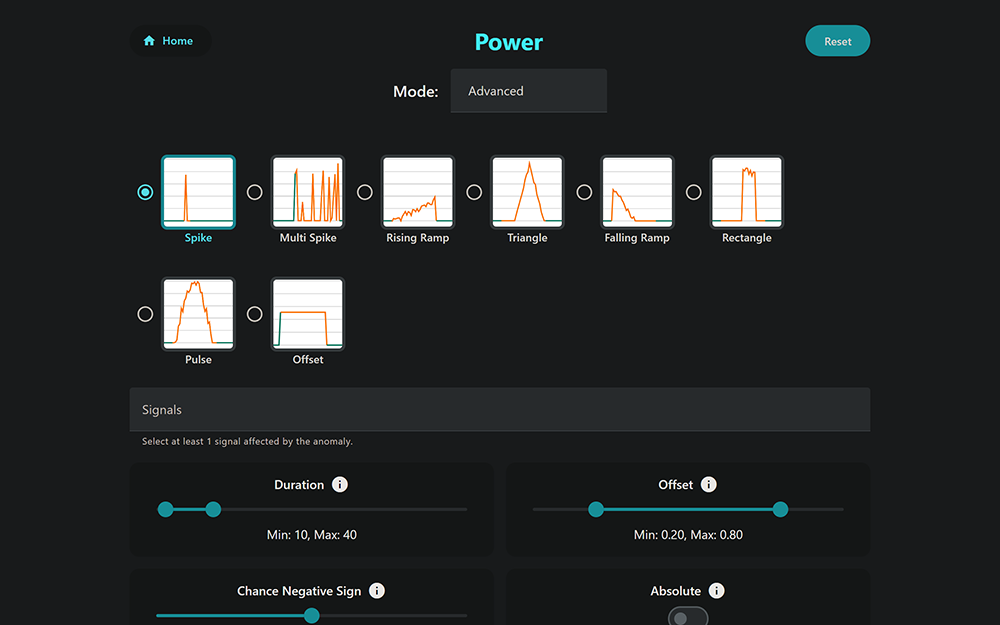

Even in this state, the ML can build the object model. The ML learns to detect a fault or anomaly based on the data sensors fed into it. These faults are early warnings about failures in the machinery. The sooner you know about these issues, the sooner you can take proactive steps to improve your operational reliability and prevent costly downtime (Figures 2 and 3).

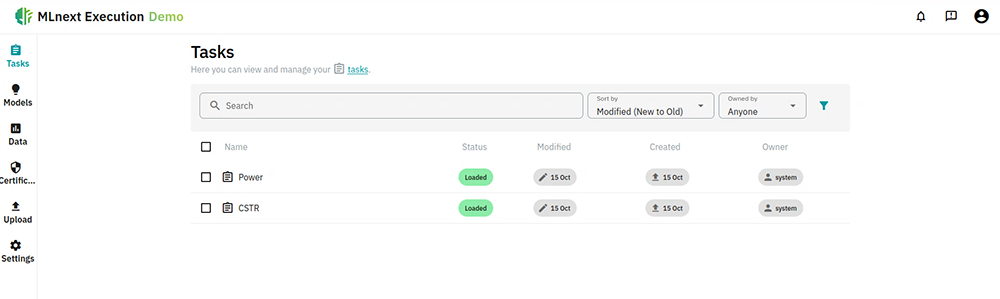

Machine learning models learn the normal operating behavior of a machine by analyzing historical and live sensor data (Figure 4). Once the model understands that baseline, it flags anomalies that often precede faults or component failure. These early warnings give maintenance teams more time to react and reduce unplanned downtime.
2. Predictive maintenance
As ML identifies unusual patterns in energy usage or machine behavior, plant operators can use the data to help schedule maintenance before failures occur. Think of it as a "check engine" light for industrial equipment.
For example, a food processing plant analyzes faults and can see that they will eventually lose $100,000 an hour if the machine breaks down. With this data, they can schedule maintenance to avoid the shutdown.
3. Standardization and data-driven decision-making
Historically, when a production line seemed "off," teams relied on experience, manual time studies, and subjective judgment to diagnose the problem. A technician might watch a station for a week with a stopwatch or run a time study to confirm whether cycle time was drifting.
ML consistently and objectively collects and analyzes data across different machines and processes. It can detect that the router time doubled the last 1,000 times that an article was run. Based on the data, the team can determine whether to adjust the router time or target a process improvement project.
This can replace manual time studies and subjective assessments with objective insights.
With that objective insight, teams can determine whether the issue requires a parameter adjustment or a dedicated process-improvement project. Instead of relying on tribal knowledge or spot-checking, plants gain a consistent, repeatable foundation for decision-making.
4. Scalability and automation
So far, Phoenix Contact has only begun the ML process on three machines, but the goal is to expand this to other machines in the U.S. plant. Once trained, ML models can run continuously and analyze data every few seconds, monitoring systems 24/7.
The next state would be automated responses. Once the anomaly is detected, the ML can make a decision and take action on its own, especially in cases where multiple machines run in parallel. That automated action might mean stopping a machine process and turning on another machine that can run the same process, or balancing responsibilities between different machines.
5. Enhanced visualization and reporting
Visualization software connects to a database and shows the values live. An ML program that integrates with a manufacturer's existing dashboards, such as Grafana or MicroStrategy, can provide live insights and anomaly alerts. This makes it easy to share data across teams or display it in public areas.
6. Improved collaboration and knowledge sharing
The implementation process fosters cross-functional collaboration between engineering, IT, and product teams, enhancing organizational learning and readiness for future deployments.
Prepare for challenges: Security, IT and training
Cybersecurity is a high priority for Phoenix Contact. Protecting our machines and systems from cyberattacks is essential, but some IT and networking policies presented challenges for our team.
Colleagues in Germany trained the U.S. team on the demo software via Microsoft Teams. Everyone ran the installation independently and built the application on their individual computer. However, computers in the factory and offices run different software and operating systems, so even though we were all running the exact same training, we experienced different challenges along the way.
For example, we originally could not run Docker containerization on our local machines. The solution is very portable, but if Docker is not available, things can get complicated. Once we identified the cause of the problem, we were able to resolve the containerization issue by adjusting a few variables.
Close collaboration and training were key to mitigating these problems when they arose.
Conclusion

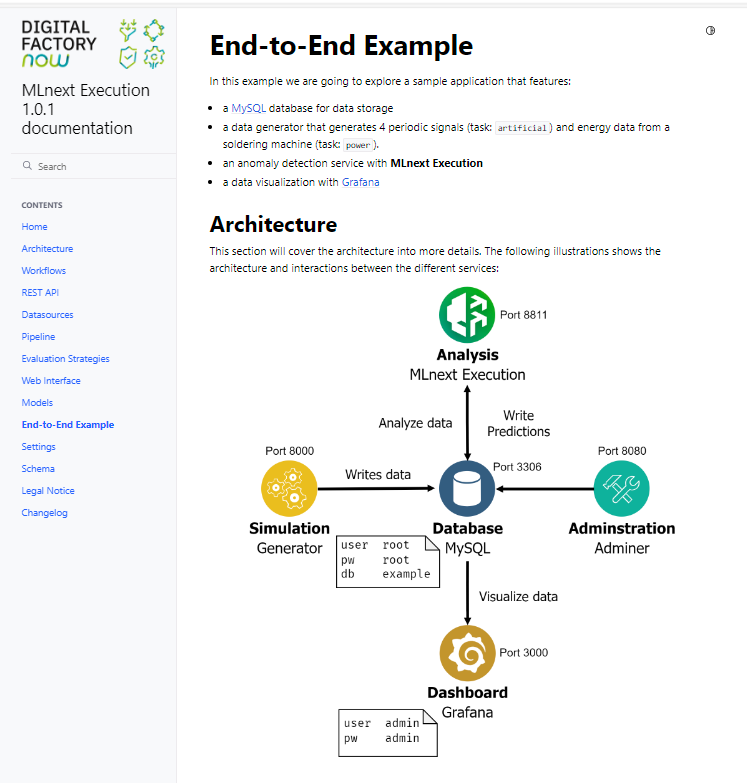

Pre-ML, an experienced engineer could look at the raw data and analyze it. We could see when something looks out of place or normal operations. We could look at a time-based database by hourly or daily increments to spot potential anomalies. However, since ML runs 24/7, it's like having an engineer constantly monitoring the data and analyzing it every five seconds (Figure 5).
The result is clearer visibility, earlier fault detection, and fewer unexpected failures. ML-driven insights support predictive maintenance, reduce downtime, and free engineering staff to focus on higher-value improvement work rather than manual monitoring.
For manufacturers striving to stay competitive, Industry 4.0 is an imperative step in quality improvement and customer satisfaction. Machine Learning is a practical tool that delivers measurable operational and financial benefits today and is no longer a futuristic concept.
