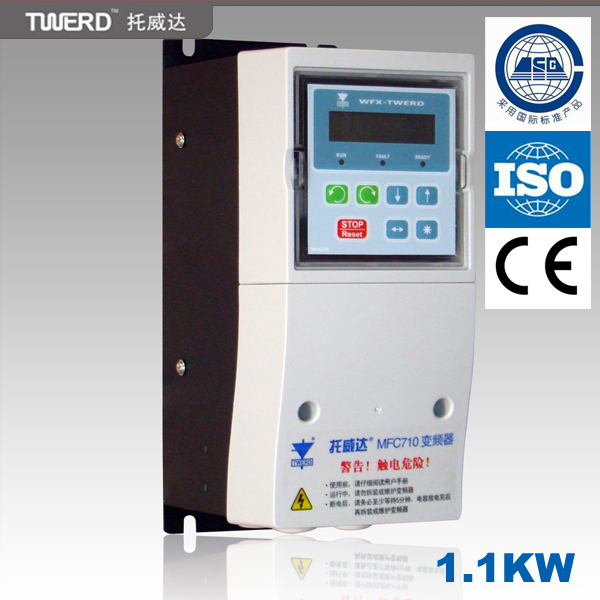

Sensorless vector frequency converter MFC710 type 1.1-315kw
Technical Features:
DTC-SVM technology (Direct Torque Control - Space Vector Modulator) with perfect performance
* Three-phase supply3*400v 50/60 Hz
* Output0-400 Hz,3*400v
* Rated output power 15-315kw
* Advance control modes:
· U/f=const, Vector mode (sensor or sensorless)
· Removable operating panel with LCD alphanumeric display
· Integrated Logic Controller (PLC)
· Built-in "reeler-calculator"
· Built-in pump or fan set controller
· Integrated PID controller
· Embedded communication module RS232/RS485 (Modbus)
· Programmable fixed frequencies
· Digital potentiometer function
· Direct rotational (or linear) incremental encoder (5V line interface)
· Elimination of resonance frequencies bands
· Definable shapes and slopes of selected frequency characteristic (linear, "S"-shaped)
· Allowable work with torque control
· Automatic identification of motor parameters
· Programmable control structure: - two customizable control variants (A & B): - speed selector block (control panel, analog input, PID controller, digital potentiometer, function block), - torque selector block(analog inputs, function block), - run and direction control (control panel, digital input, function block), - programmable digital inputs: run, direction, run blockade, external trip, trip cancellation, - programmable digital outputs (3 relays and 1 open collector type): ready, run, fault, warning, overtemperature of heatsink, given speed reaching, threshold speed reaching, current limit, function block), - programmable analog outputs: frequency, rotational speed, output current, voltage, loading of motor, function block.
· Total work counter (hours)
· Diagnostic and blockade system
· Control panel protection with system of passwords
· Embedded RFI filter (for up to 15kW)
· Memory for 4 motors parameters
Allowable use of default values for all parameters
Type of frequency conveter |
Constant-torque load Overload 1.5 |
Constant-torque load Overload 1.5 |
Ip [A] |
size[MM] |
||
Pn1[kw] |
In1[A] |
Pn1[kw] |
In1[A] |
|||
|
MFC710/0,75kw |
0,75 |
3,0 |
1,1 |
2,5 |
5,25 |
114x267x154 |
|
MFC710/1,1kw |
1,1 |
3,5 |
1,5 |
4,0 |
5,25 |
114x267x154 |
|
MFC710/1,5kw |
1,5 |
4,0 |
2,2 |
5,5 |
6,0 |
114x267x154 |
|
MFC710/2,2kw |
2,2 |
5,5 |
3,0 |
7,8 |
8,3 |
114x267x154 |
MFC710/3kw |
3,0 |
7,8 |
4,0 |
9,0 |
11,7 |
114x267x154 |
MFC710/4kw |
4,0 |
10,0 |
5,5 |
12,0 |
15,8 |
114x267x154 |
|
MFC710/5,5kw |
5,5 |
12,0 |
7,5 |
18,0 |
18,0 |
130x337x188 |
|
MFC710/7,5kw |
7,5 |
18,0 |
11,0 |
24,0 |
27,0 |
130x337x188 |
MFC710/11kw |
11,0 |
24,0 |
15,0 |
30,0 |
36,0 |
130x337x223 |
MFC710/15kw |
15,0 |
30,0 |
18,0 |
39,0 |
45,0 |
130x337x223 |
MFC710/18kw |
18,0 |
39,0 |
22,0 |
45,0 |
60,0 |
220x450x225 |
MFC710/22kw |
22,0 |
45,0 |
30,0 |
60,0 |
68,0 |
220x450x225 |
MFC710/30kw |
30,0 |
60,0 |
37,0 |
75,0 |
90,0 |
225x600x250 |
MFC710/37kw |
37,0 |
75,0 |
45,0 |
90,0 |
112,0 |
225x600x250 |
MFC710/45kw |
45,0 |
90,0 |
55,0 |
110,0 |
135,0 |
225x600x250 |
MFC710/55kw |
55,0 |
110,0 |
75,0 |
150,0 |
165,0 |
360x680x270 |
MFC710/75kw |
75,0 |
150,0 |
90,0 |
180,0 |
225,0 |
360x680x270 |
MFC710/90kw |
90,0 |
180,0 |
110,0 |
210,0 |
275,0 |
430x955x270 |
MFC710/110kw |
110,0 |
210,0 |
132,0 |
250,0 |
315,0 |
430x955x290 |
MFC710/132kw |
132,0 |
250,0 |
160,0 |
310,0 |
375,0 |
575x1020x290 |
MFC710/160kw |
160,0 |
310,0 |
180,0 |
380,0 |
465,0 |
575x1020x290 |
MFC710/200kw |
200,0 |
380,0 |
250,0 |
460,0 |
570,0 |
700x1410x430 |
MFC710/250kw |
250,0 |
460,0 |
315,0 |
570,0 |
690,0 |
700x1410x430 |
MFC710/315kw |
315,0 |
570,0 |
355,0 |
680,0 |
850,0 |
700x1410x430 |
MFC710/355kw |
355,0 |
650,0 |
400,0 |
730,0 |
940,0 |
700x1410x430 |
for more information,pls contact [email protected]
