Premio’s Industrial Panel PCs and Touch Monitors are purpose-built for the toughest embedded deployments requiring mission-critical reliability. From agriculture to modern virology studies, diverse industrial sectors are embracing Industry 4.0 for improved efficiency, safety, and hygienics. In these spaces that require the utmost cleanliness, Premio’s IP66/69K rated SIO Series is an all-in-one touchscreen computer with a rich display that grants exceptional control and automation capabilities. The SIO’s remarkable suitability to hygienic environments simplifies integrations while enabling intuitive HMI, process automation and workload consolidation.
Built with a sealed IP-rated SU316 stainless-steel enclosure, the SIO Series is ideal for Industry 4.0 solutions in food and beverage processing, pharmaceutical manufacturing, and cleanroom settings. SIO Series key features:
- Mainstream automation line of screen sizes: 15” - 23.8”
- Rigid, corrosive resistant stainless-steel enclosure
- IP66/IP69K rated resilience against water and dust penetration
- Impenetrable, locking M12 I/O connectors
- 7H hardness glass resists scratches and damage
- Optical bonding standard upholds clarity in humid areas for longevity
- Flexible stainless steel mounting options: Panel, VESA or Yoke
Embedded SoC for Low Power Processing and Performance
Expanded compute, graphic, and media capabilities for industrial IoT applications. The robust SoC enables agile I/O connectivity and device security at low power consumption that is perfect for in-line HMI and industrial panel PCs.
- Intel® Celeron® Processor J1900 or Intel 8th GenMobile-U i5 8365UE Quad Core Processor
- 1x 204-pin DDR3L SO-DIMM, max 8GB or 1x 260-pin DDR4 2400MHz SO-DIMM , max 32GB
- 1x mSATA
- 2x M12 LAN, 4x USB 2.0, 2x M12 COM
- 1x Full-size Mini PCIe for expansion
- Supports Straight AC-in (110V to 240V AC) power input
- TPM 2.0
Stainless steel: Enhanced durability
A low-profile, stainless-steel solution offers reliable and structural durability and corrosion resistance suited to their exposure. Built with Stainless Steel SUS316 (Type 316), it provides the SIO Series with lasting utility including
- Corrosion Resistance: Staving off the destructive effects of many corrosive substances.
- Lightweight Strength: Ideal strength-to-weight balance, forgoing unnecessary material heft.
- Wide Temperature Threshold: Extreme heat and cold do not diminish the stainless steel’s formidable strength.
- Hygienic Simplicity: Low-maintenance, nonabsorbent and withstands intense cleaning.
- Sleek Presentation: Adds modern sophistication and a smart appearance to Smart industrial systems.

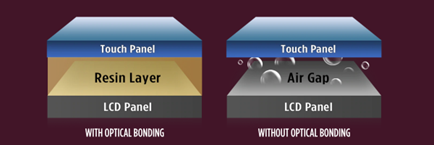

Optical bonding for ultimate clarity and long-term reliability
Optical bonding fills in the vulnerable air gap between the touch and LCD panel with durable resin. Industrial panels with optical bonding yield better durability, brighter images, increased touch accuracy and readability, and most importantly, prevents condensation in humid, damp environments.
Ruggedized stainless steel pressure valve
An automatic pressure valve keeps the SIO safe by balancing the internal pressure that may be affected by external environmental factors. It regulates internal pressure, protecting the PC from damage due to temperature fluctuations and preventing condensation. The valve also acts as a safety measure, preventing failures in sudden pressure increases, ensuring overall reliability and safety for the SIO in harsh industrial deployments.
SIO-200 pressure valve importance and key benefits
The SIO Series unifies advanced compute capabilities, I/O expandability and interactive display for dynamic industrial deployments. The stainless steel SIO Series are designed fanless, strong and tightly sealed to sustain punishing temperatures, harsh impacts, caustic contact and intense equipment washdowns.
- Stainless steel SUS316 construction
- Passive cooling and fanless design
- Industrial grade I/O with locking M12 connectors
- -20°C to 55°C operating temperature
- Shock & vibration resistance
- Optical bonding for clarity and longevity
