Features:

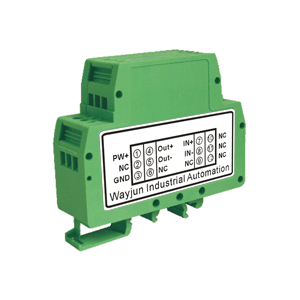

>> Optical Isolation Amplifier Module >> Accuracy grade: 0.1/0.2/0.5.
Factory calibrated, the user can use directly >> Auxiliary power supply: 5V/12V/15V/24VDC (± 10%) >> International standard one signal input: 0-100mV/0-75mV/0-24V/0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA/0-±5V/0-±10V/0-±100mV/0-±20mA >> Standard one output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA >> High linearity (nonlinearity <0.2%) >> DIN35 rail mounting >> Size: 79.0x69.50.0x25.0mm >> Strong anti-electromagnetic interference and high-frequency signal interference capability
Application:
>> Analog signal data isolation, collection and transformation >> Isolated 4-20mA or 0-20mA signal transmission >> Signal isolation and conversion of industrial site >> Long-term signal transfer without distortion >> Instrument signal transceiver >> Power monitoring, medical equipment isolation >> Ground interference suppression >> PLC / FA motor control signal isolation
Product Listing:
| Input Signal |
Power Supply
|
Output Signal
|
|||||||
| voltage | code | current |
code
|
Power |
code
|
current |
code
|
voltage |
code
|
0-5V |
V1 |
0-1mA |
A1 |
24VDC |
P1 |
0-20ma |
A3 |
0-5V |
V1 |
0-10V |
V2 |
0-10mA |
A2 |
12VDC |
P2 |
4-20ma |
A4 |
0-10V |
V2 |
0-75mV |
V3 |
0-20ma |
A3 |
5VDC |
P3 |
0~±20ma |
A6 |
1-5V |
V6 |
0-2.5V |
V4 |
4-20mA |
A4 |
15VDC |
P4 |
user-defined |
Az |
0~±10V |
V7 |
0~±5V |
V5 |
0~±10mA |
A5 |
user-defined |
Vz |
||||
0~±10V |
V7 |
0~±20mA |
A6 |
||||||
0~±100mV |
V10 |
user-defined |
Az |
||||||
user-defined |
Vz |
||||||||
Samples: 1.Input:0-5V Power Supply:24V Output:4-20mA Type No.: DIN11 IAP-V1-P1-A4 2.Input:0-10V Power Supply:24V Output:0-10V Type No.: DIN11 IAP-V2-P1-V2 3.Input:4-20mA Power Supply:24V Output:4-20mA Type No.: DIN11 IAP-A4-P1-A4 4.Input:0-100mV Power Supply:24V Output:4-20mA Type No.: DIN11 IAP-Vz-P1-A4(Vz:0-100mV) 5.Input:0-75mV Power Supply:12V Output:0-10V Type No.: DIN11 IAP-V3-P2-V2 6.Input:0~+/-10V Power Supply:24V Output:0-10V Type No.: DIN11 IAP-V7-P1-V2
