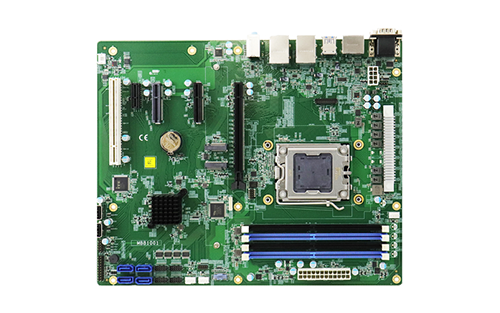

TAIPEI, Taiwan, Sept. 24, 2025 – IBASE Technology Inc. , a leading provider of rugged embedded and edge computing solutions, has introduced the MBB1001, a powerful ATX motherboard designed for embedded computing and industrial applications. Powered by AMD Ryzen Embedded 7000 Series processors and the B650 chipset, the MBB1001 delivers up to 128GB DDR5-5200 ECC memory capacity, PCIe Gen5 expansion and dual NVMe RAID support for high-reliability embedded use cases including automation, smart retail, kiosks, robotics and more. The MBB1001 supports up to 128GB of DDR5-5200 ECC memory (via 4 UDIMM slots), with dual-channel memory enabling enhanced stability under load.
It offers triple independent display outputs (DisplayPort, HDMI, DVI-D), providing versatile graphics support in multi-monitor setups. It includes a rich expansion suite: PCIe Gen5 x16, Gen5 x4, Gen4 x4, Gen3 x1, plus a legacy PCI slot for long-life industrial add-on cards, giving integrators extended flexibility to tailor system capabilities with GPUs, accelerators, or I/O cards as needed. Networking is provided by dual Intel I210 1GbE LAN ports, delivering industrial-grade reliability. Storage demands are met with dual M.2 2280 NVMe slots supporting RAID 0/1.
Additional features such as TPM 2.0 security and hardware monitoring ensure reliability in mission-critical environments. With next-generation AMD processing power, PCIe Gen5 expansion and industrial-grade design, the MBB1001 is built for demanding embedded deployments, edge AI and advanced industrial systems. Key teatures of MBB1001:
- Next-gen AMD performance: Powered by AMD Ryzen Embedded 7000 series with B650 chipset for unmatched speed and reliability.
- High-speed DDR5 memory: Supports up to 128GB dual-channel DDR5-5200 with ECC for seamless multitasking and stability.
- Versatile triple display: Connect up to three independent monitors via DisplayPort, HDMI and DVI-D.
- Flexible expansion options: PCIe Gen5/Gen4 slots and legacy PCI deliver scalability for diverse applications.
- Industrial-grade reliability: Dual GbE LAN, dual M.2 NVMe with RAID, TPM 2.0 security and rich I/O for critical deployments.
