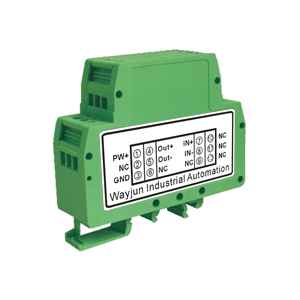

0-5A AC Current Signal Isolated Transmitter

Summary: WAYJUN AC current signal isolated transmitter adopts the magnetic isolation technology advanced, capable of isolating inspection / monitoring of AC voltage signal, the product has the advantages of small volume, low power consumption, high precision. A single-phase, three-phase three wire and three-phase four wire multi. Between the input and output and auxiliary power supply can withstand 2500VDC isolation voltage, all output multiple products are isolated from each other, can be flexibly applied. Widely used in electric power, chemical, petroleum, industrial and automation fields. Product List: DINAC – 5AC - P‚ñ° - V/I‚ñ° Power Supply Output Signal Power code current code voltage code 24VDC P1 0-20ma A3 0~5V V1 12VDC P2 4-20ma A4 0-10V V2 5VDC P3 User-defined Az 1-5V V6 15VDC P4 User-defined Vz 220VAC P5 Samples: 1ÔºöInput:0-5A Power supply:24V output:4-20ma Part No.:DINAC-5AC-P1-A4 2ÔºöInput:0-5A Power supply:220VAC output:4-20ma Part No.:DINAC-5AC-P5-A4 Product absolute maximum rating: Continuous Isolation Voltage:3000VDC Junction Temperature:+85‚ÑÉ Storage Temperature:+150‚ÑÉ Power voltage rangeÔºö±10%Vin Note: if beyond the scope, the product may cause permanent damage. Technical Parameter: Parameter Name Test Condition Parameters Unit Note Precision Grade 0.5 Input Range 0~500mA~5AAC Any Value Isolation Voltage 0.5mA/60S 2500 VDC The linear range 0~120 % Load capacity 4~20mA output <300 ohm 0~5V output >2000 ohm overload capacity terminal input 2(Max<50A) times 5S Frequency response 25~50~3000 Hz Working temperature -10 ~ +70 ‚ÑÉ
