4-20mA to 0-20Hz Frequency Signal Isolated Converter/Transmitter

By: Shenzhen WAYJUN Industrial Automation
13 October, 2014

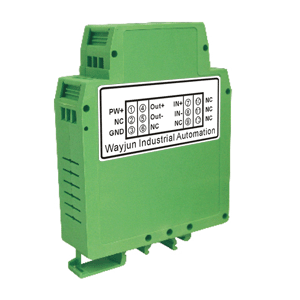

4-20mA to 0-20Hz Frequency Signal Isolated Converter/Transmitter
4-20mA to 0-20Hz Frequency Signal Isolated Converter/Transmitter
mA&V to Frequency Signal Isolated Converter/Transmitter open collector/5V voltage pulse

Features:

>> Accuracy class: 0.1, 0.2.

Factory calibrated, the user can use directly >> Input :0-5V / 0-10V/1-5V ,0-10mA / 0-20mA/4-20mA >> output signal :0-5KHz / 0-10KHz/1-5KHz standard signal >> Auxiliary power supply: 5V, 9V, 12V, 15V or 24VDC >> Full scale high linearity (non-linearity <0.1%) >> Isolation voltage: 2500VDC (1mA, 60S) >> Three-port isolation:input / output / power supply >> Industrial temperature range: - 45 to + 85 ° C >> Mounting: DIN 35 rail installation >> Dimensions: 79x106.7x25mm

Application:

>> Analog signal isolation, data collection and transformation

>> 4-20mA isolation of the 0-5KHz signal transmission

>> Industry scene signal isolation and transformation

>> Signal long distance transmission without distortion

>> Instrument signal transceiver

>> Isolation power monitoring, medical equipment

>> Voltage or current analog signal to frequency signal

>> PLC frequency of the analog signal acquisition

>> Non electrical signal transmission

Products Listing:
                             DIN11  IAP - V(A)‚ñ° - P‚ñ° - F‚ñ°
Input Signal
Power Supply
Output Signal
voltage code current code
Power
code
frequency
code

0-5V

V1

0-1mA

A1

24VDC

P1

0-5KHz (5V voltage pulse)

F1

0-10V

V2

0-10mA

A2

12VDC

P2

0-10KHz (5V voltage pulse)

F2

0-75mV

V3

0-20ma

A3

5VDC

P3

1-5KHz (5V voltage pulse)

F3

0-2.5V

V4

4-20mA

A4

15VDC

P4

0-5KHz (open collector)

F4

0~±5V

V5

0-±10mA

A5

user-defined

Pu

0-10KHz (open collector)

F5

0-±10V

V7

0-±20mA

A6

1-5KHz (open collector)

F6

0-±100mV

V10

user-defined

Au

user-defined

Fu

user-defined

Vu
Samples:
1:  Input:0-5V           Power:24V   Output:0-5KHz (5V voltage pulse)   Type No.: DIN11 IAP-V1-P1-F1
2:  Input:0-±10V      Power:24V   Output:0-5KHz (open collector)       Type No.: DIN11 IAP-V7-P1-F4
3:  Input:4-20mA    Power:12V    Output:1-5KHz (5V voltage pulse)    Type No.: DIN11 IAP-A4-P2-F1
4:  Input:0-75mV    Power:15V    Output:0-10KHz (5V voltage pulse)  Type No.: DIN11 IAP-V3-P4-F2
5:  Input:4-20mA    Power:24V    Output:0-20Hz (open collector))       Type No.: DIN11 IAP-A4-P2-Fu(0-20Hz,open collector)
6:  Input:4-20mA    Power:24V    Output:0-40KHz (5V voltage pulse)   Type No.:DIN11 IAP-A4-P2-Fu(0-40KHz,5V voltage pulse)
Photo of Shenzhen WAYJUN Industrial Automation

Shenzhen WAYJUN Industrial Automation
Shenzhen WAYJUN Industrial Automation designs A/D and D/A Data Acquisition Module,digital signal DI/DO module, analog signal isolated converter, signal conditioners, 4-20mA current signal splitter, isolated amplifier (RTD/current/voltage/frequency/speed/potentiometer/pulse), Min-power DC DC converters. Our products also carry the CE approval for safety. WAYJUN's products are widely used in the industry power fields of control, electric power, electronic instrument, medical electronic, rail transit, communication, telecom, automation, Medical and Test & Measurement.
