Speed signal isolation transmitter, sine wave shaping

By: Shenzhen WAYJUN Industrial Automation
05 June, 2014

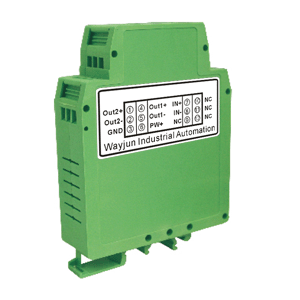

Speed signal isolation transmitter, sine wave shaping
Speed signal isolation transmitter, sine wave shaping
Speed sensor signal input, shaping square wave signal

Features:

>> Speed sensor signal input, shaping square wave signal >> 200mV peak weak signal amplification and shaping >> Sine wave, sawtooth signal input, square wave signal output >> No changing the original waveform frequency, fast response >> Input / output / power supply three-port 3000VDC isolation >> Power supply: 5V, 12V, 15V or 24V DC single power supply >> Low cost, small size, easy to use, high reliability >> Standard DIN35 rail mounting >> Size: 106.7x79.0x25.0mm >> Industrial temperature range: - 45 to + 85 ° C

Application:

>> Speed sensor signal isolation, acquisition and conversion >> Motor speed measurement >> Car ABS anti-lock braking system >> Speed signal amplification and shaping >> Ground interference suppression >> Motor speed monitoring system >> Velocity measurement alarm >> Signal no distortion transmitter and transmission

Product Listing:

DIN11 IAP – S‚ñ° - P‚ñ° – O‚ñ°
Input Signal
Power
Output Signal

Code

Power
Code

Code
+/-signal input，sine wave input,peak value（VP-P）：200mV~50V

S1

24VDC

P1

output level 0-5V

O1

single signal input,

peak value（VP-P）：5V

S2

12VDC

P2

output level 0-12V

O2

single signal input,

peak value

（VP-P）：12V

S3

5VDC

P3

output level 0-24V

O3

single signal input,

peak value

（VP-P）：24V

S4

15VDC

P4

Open collector output

O4

user-defined

Su

user-defined

Ou

Samples: 1. Input:Speed ‚Äã‚Äãsensor, sine wave VP-P: 200mV~10V,Power Supply:24V,Output:0-5V level Type No. :DIN11 IAP S1-P1-O1 2. Input:Speed ‚Äã‚Äãsensor, sine wave VP-P: 200mV~10V,Power Supply:12V,Output:0-24V level Type No. :DIN11 IAP S1-P2-O3 3.

Input:0-5V level Power Supply:24V Output:0-24V level Type No. :DIN11 IAP S2-P1-O3 4. Input:0-5V level Power Supply:12V Output:Open collector output Type No. :DIN11 IAP S2-P2-O4 5. Input:user-defined Power Supply:24V Output:user-defined Type No.

:DIN11 IAP Su-P1-Ou 6. Input:differential signal Power Supply:24V Output:Open collector output Type No. :DIN11 IAP Su-P1-O4(Su:differential signal)

Technical Parameter:

Parameter Name Test Condition MIN. TYP MAX. Unit

Isolated Voltage 1min 1500 2500 VDC

Input Signal

Amplitude（VP-P） 0.2 10 60 V

Frequency 0 10 500 kHz

Input impedance 10 Kohm

Input current 5V input 0.45 mA

Output Signal

Amplitude（VP-P） O1: output level 0-5v 5 V

Frequency 0 10 500 KHz

Voltage(High level)

O1: output level 0-5v

5 V

Voltage(Low level) 0 0.05 V

Current(High level) 2 5 mA

Current(Low level) 2 8 mA

Voltage

Output: Open collector output

5 30 V

Current 3 10 mA

Response Time 1500 ns

Power supply

Voltage User-defined 3.3 12 24 VDC

Current VD=12V 83 mA

Power Supply Loss 1 W

Work Environment Temperatuer -25 85 ‚ÑÉ

Storage Temperature -25 85 ‚ÑÉ

Photo of Shenzhen WAYJUN Industrial Automation

Shenzhen WAYJUN Industrial Automation
Shenzhen WAYJUN Industrial Automation designs A/D and D/A Data Acquisition Module,digital signal DI/DO module, analog signal isolated converter, signal conditioners, 4-20mA current signal splitter, isolated amplifier (RTD/current/voltage/frequency/speed/potentiometer/pulse), Min-power DC DC converters. Our products also carry the CE approval for safety. WAYJUN's products are widely used in the industry power fields of control, electric power, electronic instrument, medical electronic, rail transit, communication, telecom, automation, Medical and Test & Measurement.
