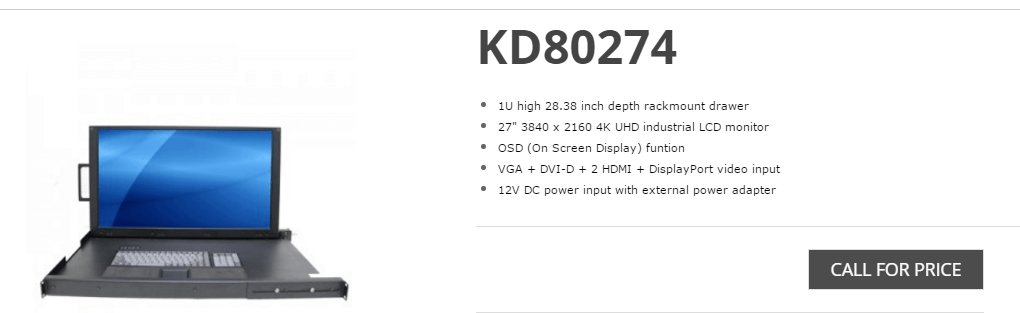

January 19, 2017 - The KD80274 features a 1U rack console with 27’’ 3840 x 2160 4K ultra high resolution LCD, VGA + DVI-D + 2 HDMI + DisplayPort input and keyboard & touch pad. It is 1U high and has a 28.38 inch depth chassis. Acnodes Corporations unveils the KD80274, a 27" 3840 x 2160 4K UHD industrial LCD monitor.
Its monitor keyboard drawer supplies 27" 3840 x 2160 4K UHD LCD, with VGA + DVI-D + 2 HDMI + DisplayPort and keyboard & touch pad in a 1U high 28.38 inch depth rack mount drawer.
KD80274 Features
It is made of a rugged steel enclosure. Plus, its LCD monitor is 27 inches and has a resolution of 3840 x 2160. Furthermore, it has a brightness of 400 and a contrast ratio of 1000:1.
Its active area in mm is 596.16(H) x 335.34(V) and its pixel pitch in mm is 155.25(H) x 155.25(V).
Additionally, its viewing angle is 178°(H) and 178°(V). Moreover, the KD80274 includes LED blacklights, 1.07B colors, and a response time of 12 m sec. (typ.).
The KD80274 has a keyboard and touchpad. Its video input is VGA + DVI-D + 2 HDMI + DisplayPort. In addition, its OSD (on-screen display) has 5-key control buttons to adjust Contrast, Color, Position, Auto-adjustment, and Factory Settings. Moreover, it has the option of 2 x 2W speakers.
Its power supply consists of a 12V DC power input with external AC to DC power adapter, and its power consumption is 85W (typ.). Furthermore, its Front I/O includes HDMI, up to 3840x2160@60GHz , and a Display Port, up to 3840x2160@60GHz. On the other hand, its Rear I/O includes VGA of up to 192x1080@60GHz , DVI-D of up to 3840x2160@60GHz , 1 x HDMI of up to 1920x1080@60GHz , and DC input. Also, it can operate at temperatures ranging from 0° to 50° C (32° to 122° F), and it can be stored at temperatures ranging from -20° to 70° C (-4° to 158° F).
