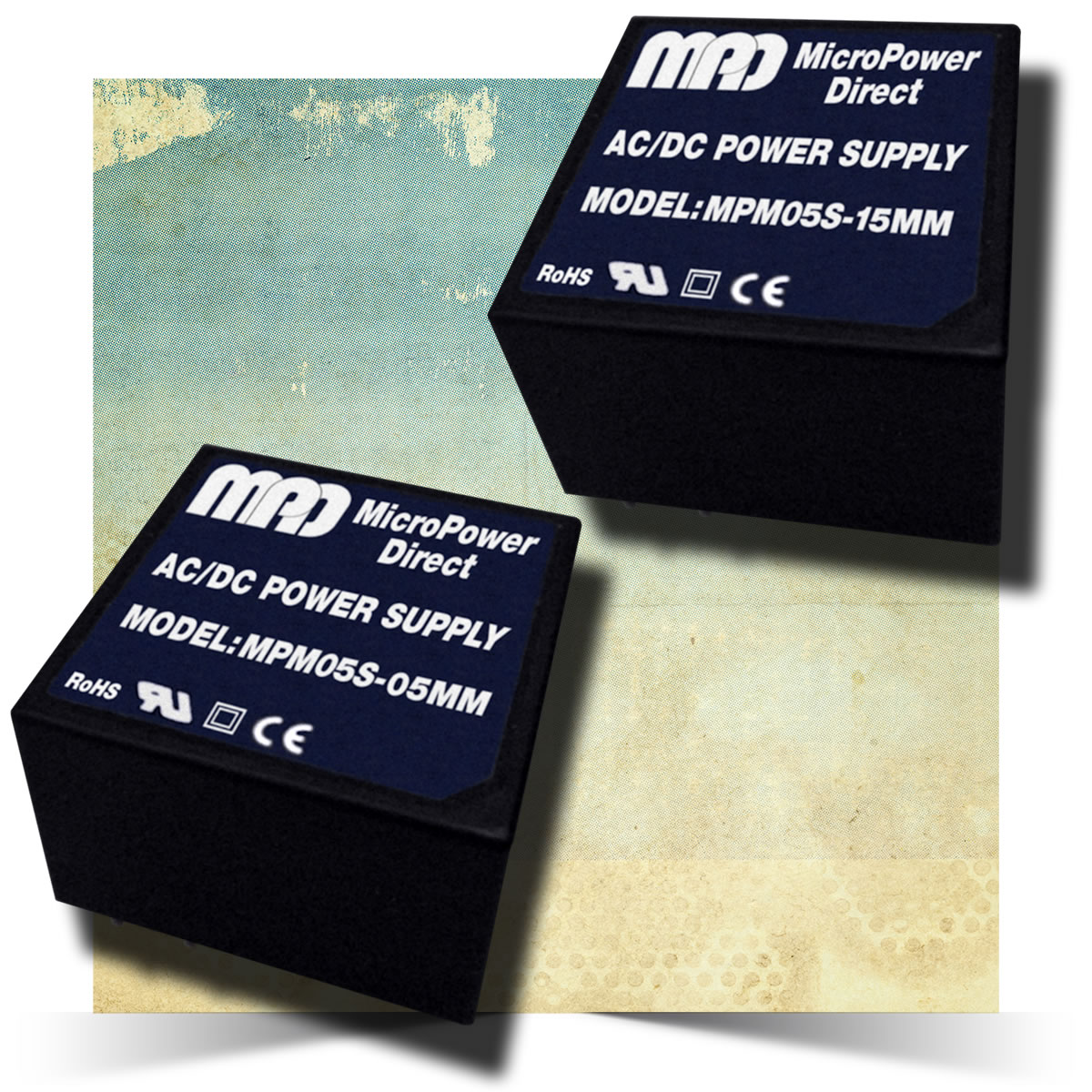

June 23, 2016 - Available from MicroPower Direct, the MPM-05MM series is a family of 5W AC/DC power supplies packaged in a miniature 1 x 1 inch case. These power supplies are designed to provide the performance, safety approvals and small size required by a wide range of space critical, board level applications.
Seven standard models operate from a universal input of 85 to 264 VAC, providing tightly regulated single outputs of 3.3, 5, 9, 12, 15, 24 or 48 VDC. Standard features include EN 55022 class B emissions, 3,000 VAC I/O isolation and 300 mW no load power consumption (meets ECO standards). All models are protected for over load, over voltage and short circuit faults.
The MPM-05MM has a Class II input (IEC 60536). This means it can be used without an earth ground connection. The MTBF (per MIL HDBK 217F) of the MPM-05MM series is greater than 1.2 Mhours. All models are approved to EN60950.
The series is RoHS compliant.
The MPM-05MM series is packaged in a miniature 1 x 1 inch package. Each model is specified for operation over the wide operating temperature range of -25°C to +70°C (ambient). All models are available on a “Chassis Mount” adapter.
The MPM-05MM series is an ideal choice for a variety of board level applications where space is at a premium.
