 PT100 to 4-20mA RTD  temperature signal transmitter
PT100 to 4-20mA RTD temperature signal transmitter

One In/One Out PT100 to 4-20mA/0-5V analog signal isolated converters/transducer/temperature converter/thermal resistance converter

Features: >> Input: Pt100/PT1000/PT10/Cu50/Cu100 >> Output signal: 4-20mA/0-20mA/0-5V/0-10V/1-5V >> Accuracy: 0.2 (FSR%) >> Containing linear and long-term compensation >> Power supplyÔºö5V(± 10%)/12V/15V/24VDC (8-32VDC) >> Isolation voltage: 2500VDC (1mA, 60S) >> Installation: DIN35 rail >> Industrial temperature range: - 45 ~ + 85 ‚ÑÉ >> Size:79x69.5x25mm Product description:      The product is isolated Pt100/PT1000/PT10/Cu50/Cu100 temperature sensor transmitter, in industry mainly used for measuring the temperature of -200 ~ +500 ‚ÑÉ. The transmitter has linear and long-term compensation, the factory in accordance with national standard Pt100 indexing table calibration, fully meets 0.2accuracy. Input, output and auxiliary power supply is completely isolated (three isolation), can withstand 2500VDC isolation voltage. Products using international standards for rail mounting DIN35, small size, high precision, stable performance, cost-effective, can be widely used in petroleum, chemical, power, instrumentation and industrial control industries. Product Listing:         WJ11 -Z- T- P- O

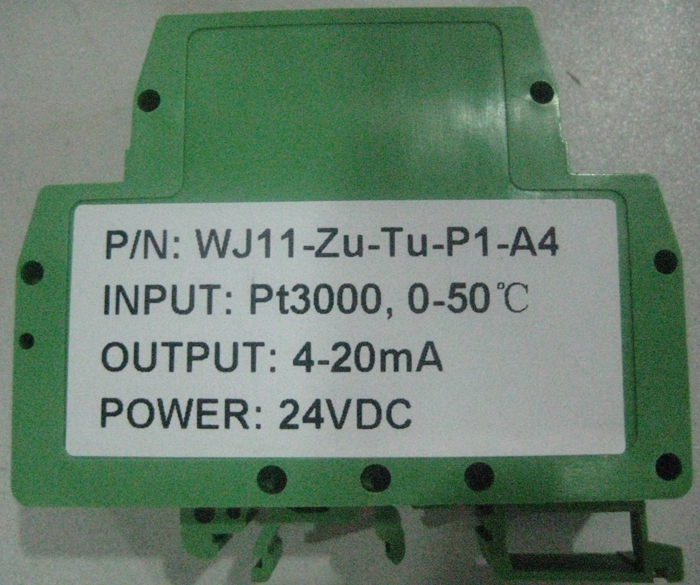

Samples: signal Input: Pt100,temperature range:0~100‚ÑÉ; signal output:4-20mA; power:24V Part No.: WJ11-Z1-T2-P1-A4

signal Input: Pt1000,temperature range:0~200‚ÑÉ; signal output:0-10V; power:12V Part No.: WJ11-Z5-T4-P2-V2

Note:when you order,please note your part No.or details.
